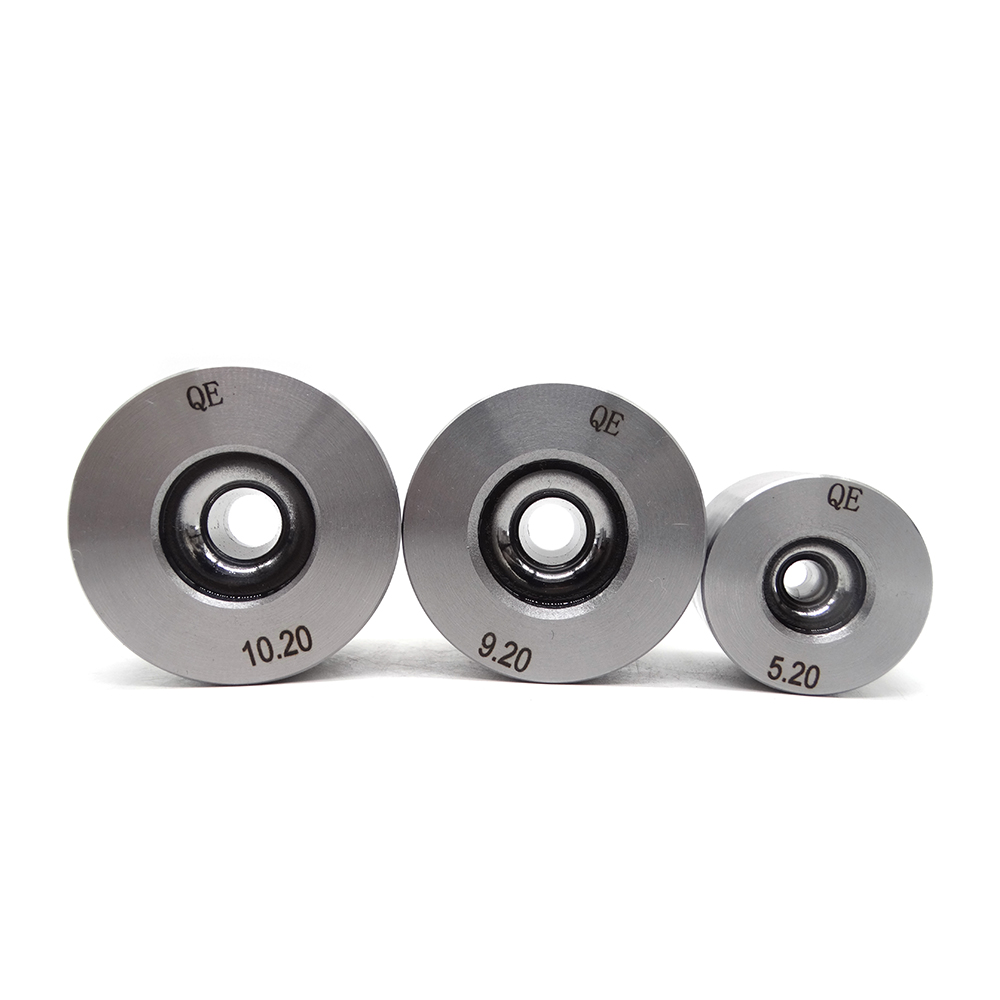

Tungsten Carbide Mold/Wire Drawing Dies 12mm/Tungsten Carbide Wire Drawing Dies

Price 29.90 USD / Piece/Pieces

Product Details

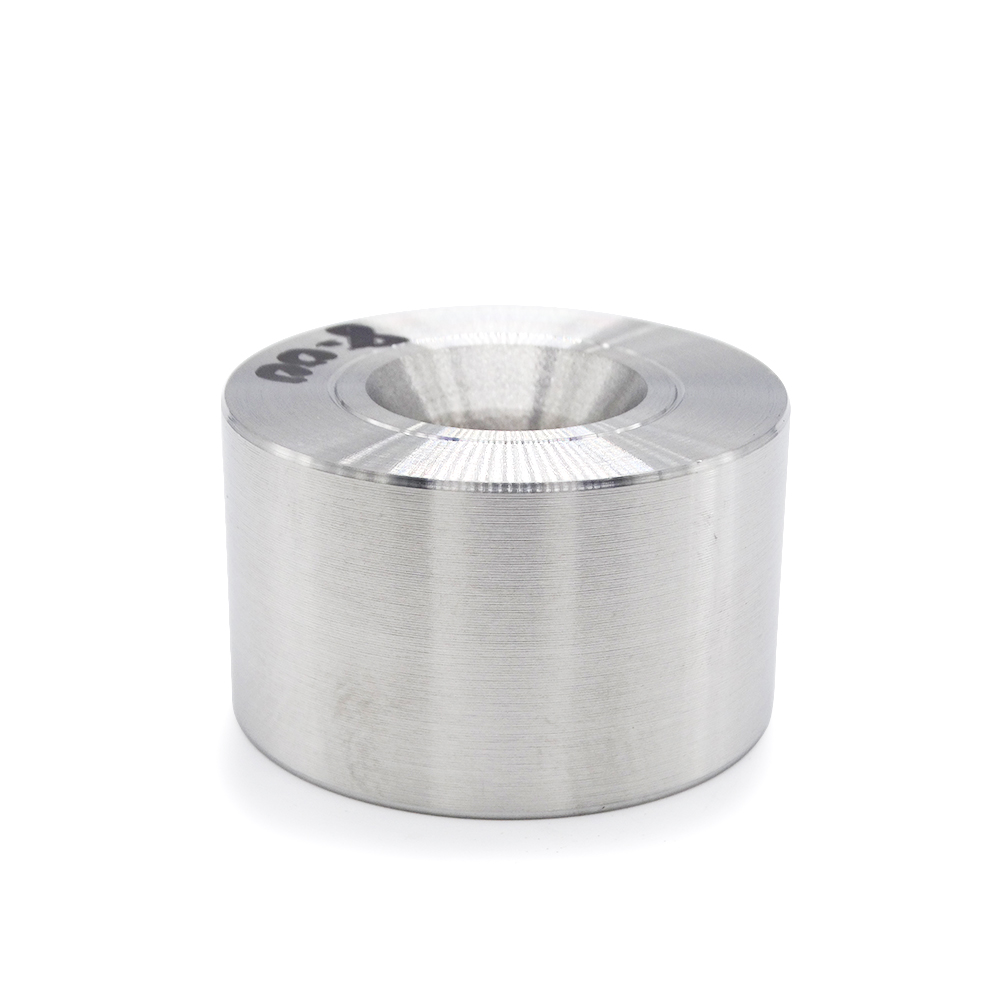

TUNGSTEN CARBIDE

WIRE DRAWING DIES

High hardness

Good Wear Resistance

High Finish And Long Service Life

Can process and customize various materials and sizes of wire drawing dies

Tungsten Carbide wire drawing die (tungsten steel die): Using high-quality hard alloy as the core, it has high hardness, good thermal conductivity and low friction coefficient. Suitable for: steel wire, stainless steel wire, copper wire, aluminum wire, tungsten wire and other large-size wire drawing of ferrous and non-ferrous metals, stranding and drawing of large-diameter cables. Mold size range: ≥1mm (larger or smaller size can be customized according to customer requirements).

Size Range(soft Wire)	Mini Tolerance	Case Diameter	Case Height
0.1-0.5	±0.001	25/28	8/10
0.5-0.8	±0.003	25/28	8/10
0.8-1.0	±0.003	25/28	8/10/12
1.0-1.5	±0.003	25/28	10/12
1.5-1.8	±0.003	25/28/30	10/12/15
1.8-2.3	±0.005	25/28/30	12/14/15
2.3-2.9	±0.005	25/28/30	12/14/15
3.0-3.2	±0.005	35/40	20/25
3.2-3.4	±0.01	40/50/60	23/25/27
3.4-4.0	±0.01	40/50/60	23/25/27
4.0-5.0	±0.01	40/50/60	23/25/27
5.0-6.5	±0.01	40/50/60	23/25/27
6.5-8.0	±0.015	40/50/60	23/25/27

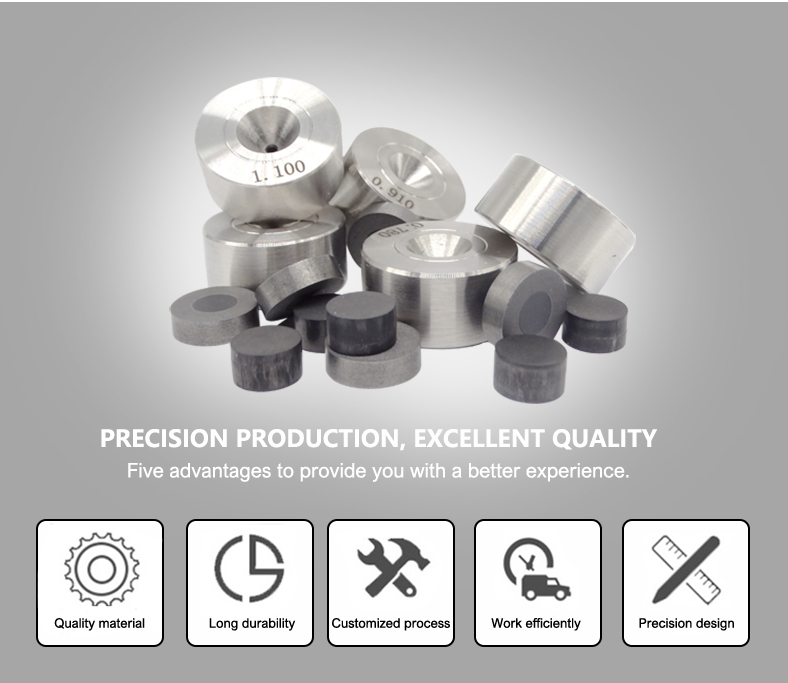

PRODUCT ADVANTAGES

Why choose us?

Long history, Rich experience

Since 1990, we have more over 30 years history, and have accumulated much experience on copper bus bar drawing carbide die manufacturer and production.

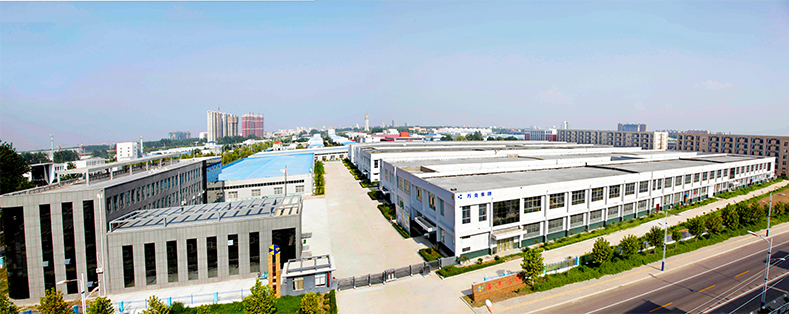

Large scale, Standard center

Our company occupies 200 acres and the total plant area is more than 70,000 square meters, including eight standard workshops, one office building and one research building. It is also a provincial engineering technology center..

Good service, High quality

We have professional service team. Not only can we help you receive diamond wire drawing dies apply for die blanks for wire drawing, but also supply more friendly and warm service for you.

Many certificates, Professional study

We have receiced many national and local awards patent certificate and obtaining many invention patents. and has an independent research and development organization in cooperation with Henan University of Technology and Zhengzhou University.

International famous, Powerful advantage

Wire drawing dies for copper wire, gold wire, silver wire, aluminum wire, and brass bar, etc, which are exported to more than 200 countries and regions. And the company participates in domestic and international exhibitions many times.

Source factory of wire drawing die

Zhecheng Hongxiang Superhard Material Co., Ltd.

We are a manufacturer and wholesaler of diamond and CBN (cubic boron nitride) abrasives and tools. Based on excellent product quality, we strive to provide our customers with three better concepts: better products, better prices and better services. The drawing dies produced by our factory are of high quality, long life and reasonable price. The filament drawn using our company's drawing die has the characteristics of good surface finish and high drawing efficiency.

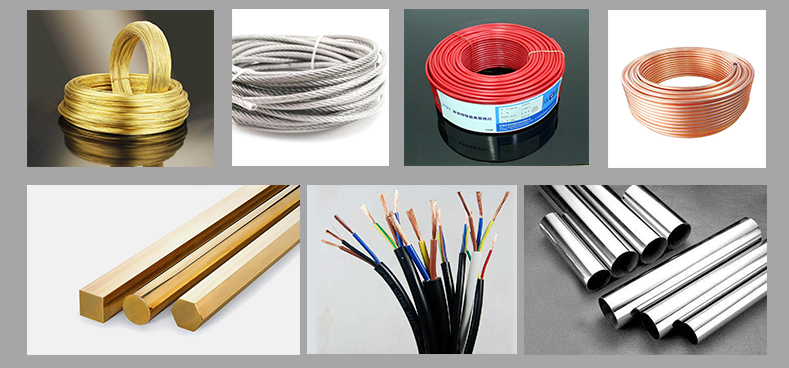

Wire drawing dies have a wide range of uses, such as high-precision wires used in electronic devices, radars, televisions,instruments and aerospace, as well as commonly used tungsten wires, molybdenum wires, stainless steel wires, wires and cables, and various alloy gold wires.
