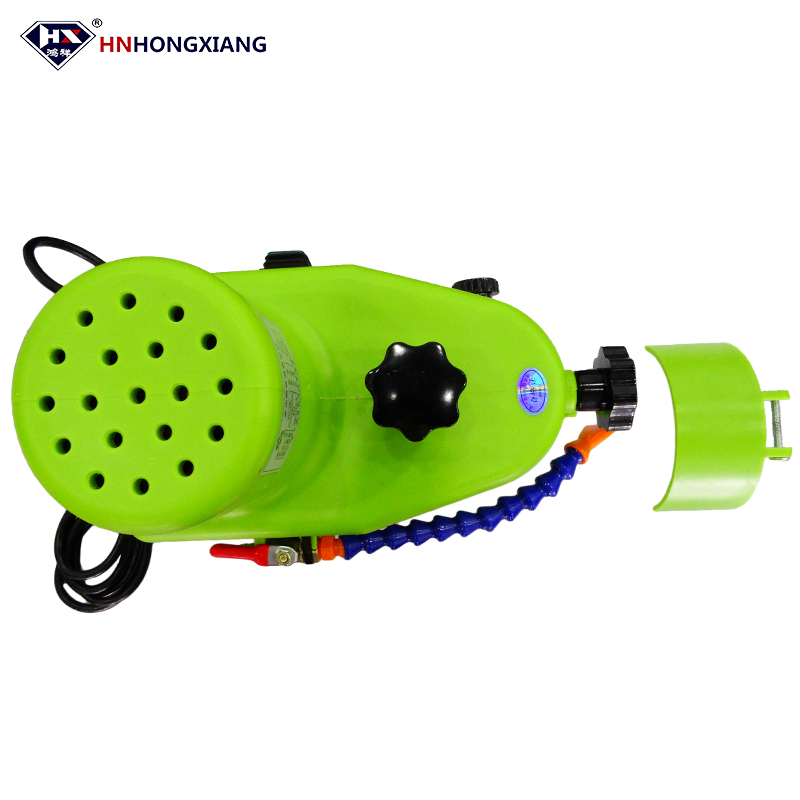

Product Details
Specification
|
Type |

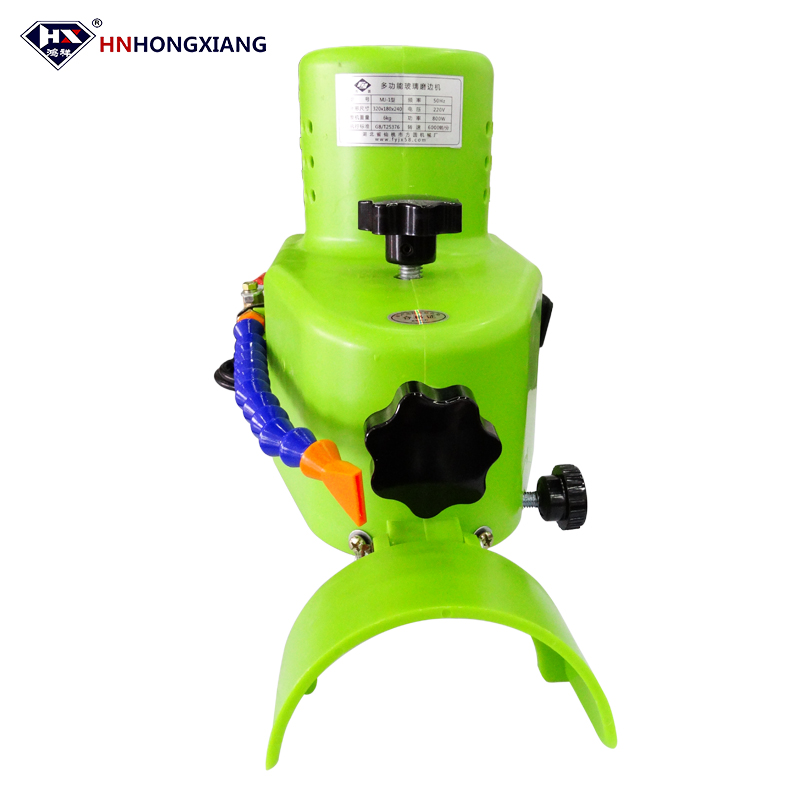

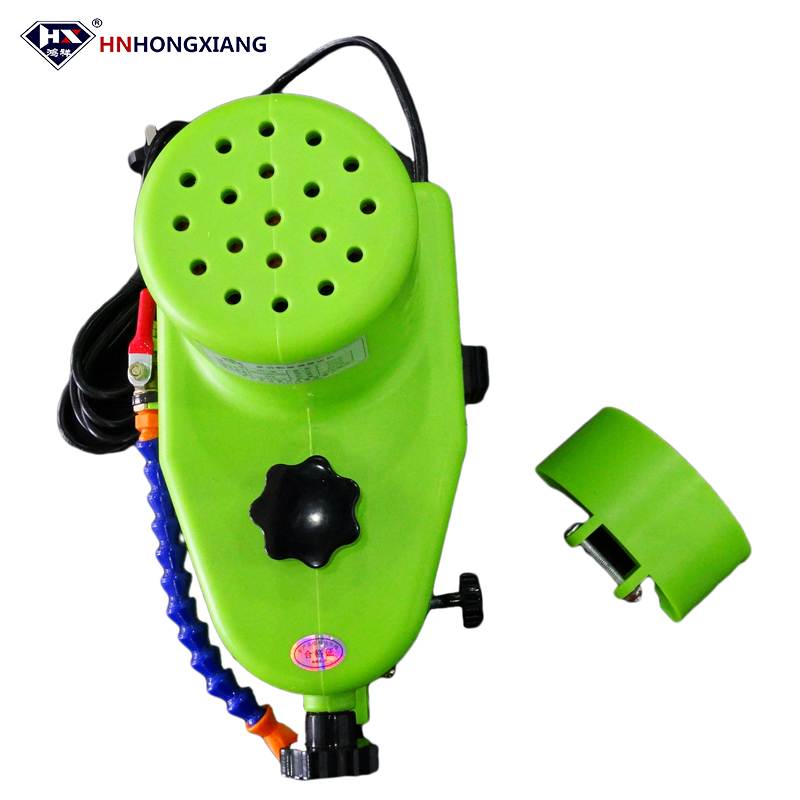

Glass Edging Machine |
|
Place of Origin |
Henan, China |
|
Brand Name |
HNHONGXIANG |
|
Dimension(L*W*H) |
43*22*23 |
|
Weight |
8kg |
|
Certification |
ISO9001:2008 |
|
OG wheel |
glass |
|
Function |
glass grinding |

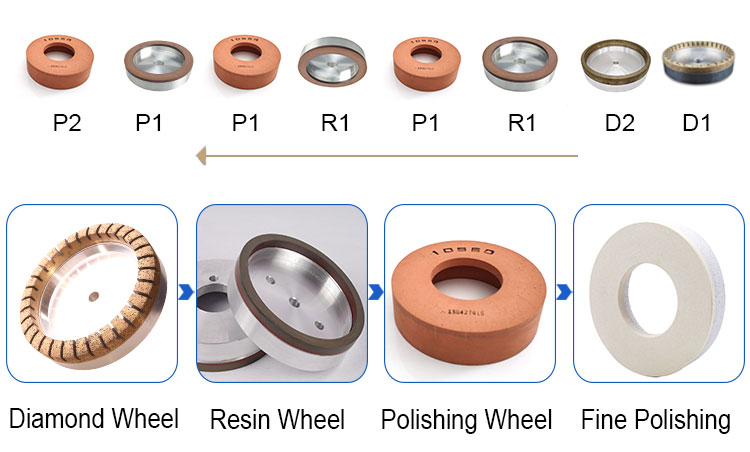

Glass Grinding Wheel Series Products
|

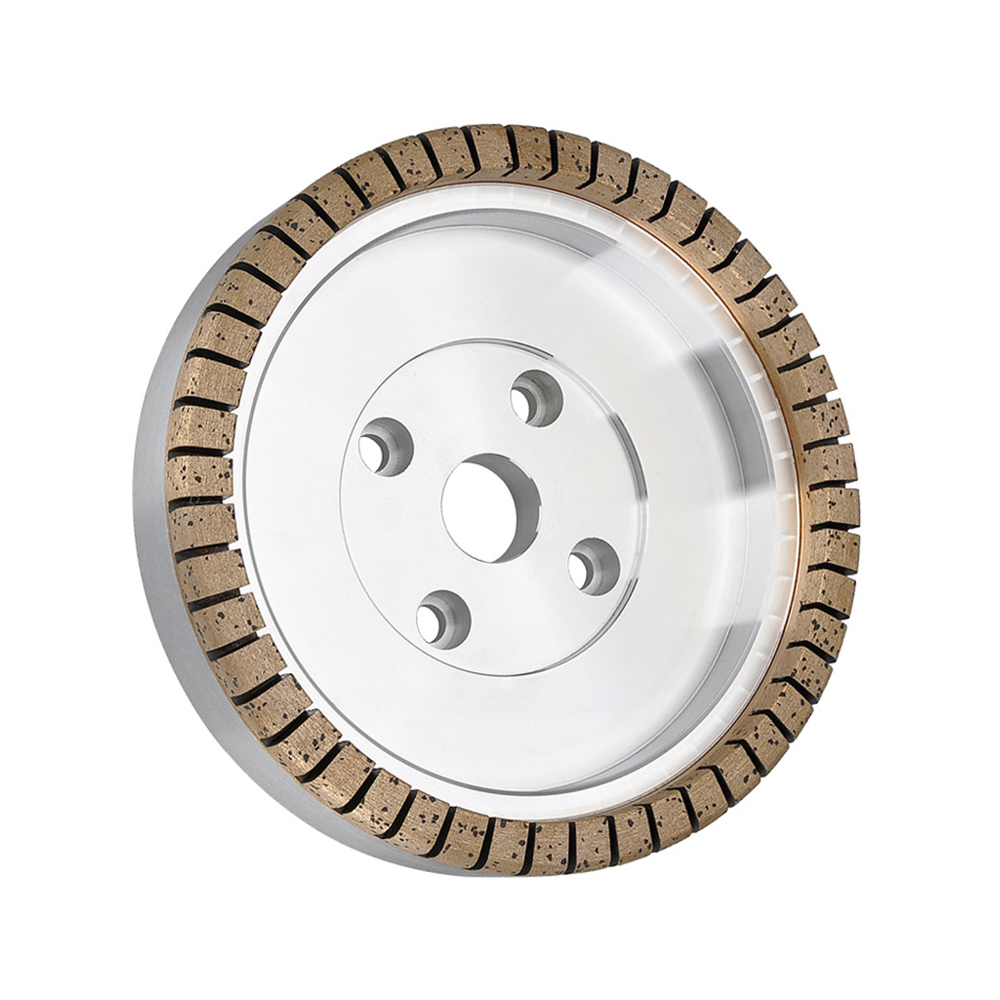

FULL SEGMENTED DIAMOND WHEELS |
||||
|
D (mm) |
W (mm) |
T (mm) |
H (mm) |
Grits (#) |
|
150 |
10 |
10 |
12/22/50 |
80# 100# 140# 240# |
|
150 |
15 |
10 |
||
|
175 |
15 |
10 |
||
|
Can be customized according to customer needs |
||||
|

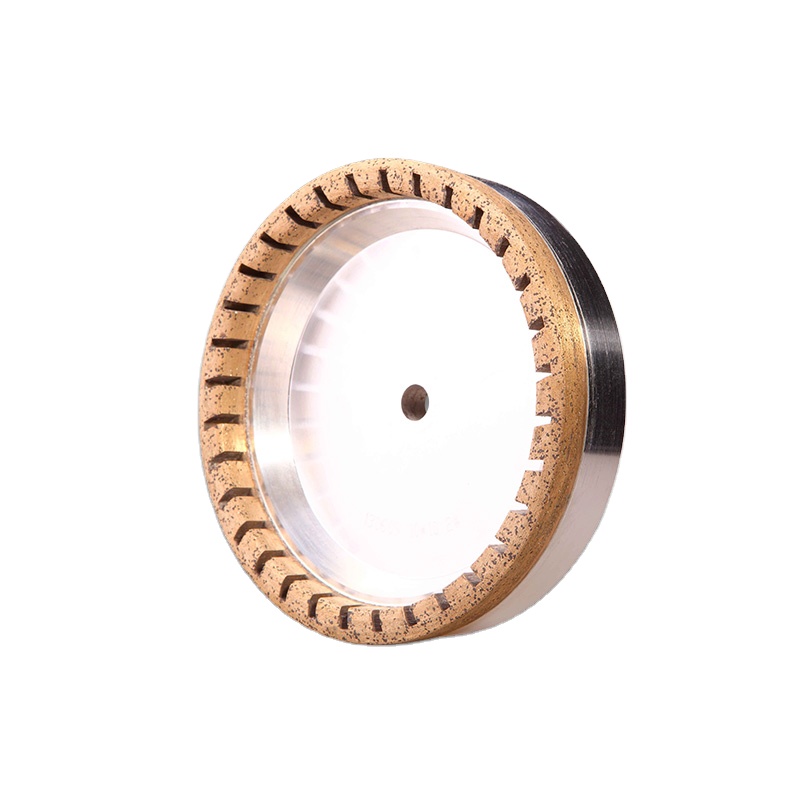

INTERNAL SEGMENTED DIAMOND WHEELS |
||||
|
D (mm) |
W (mm) |
T (mm) |
H (mm) |
Grits (#) |
|
175 |
8 |
10
|
12/22/50 |
100# 140# 180# 240# |
|
150
|
10 |
10 |
||
|
Can be customized according to customer needs |
||||
|

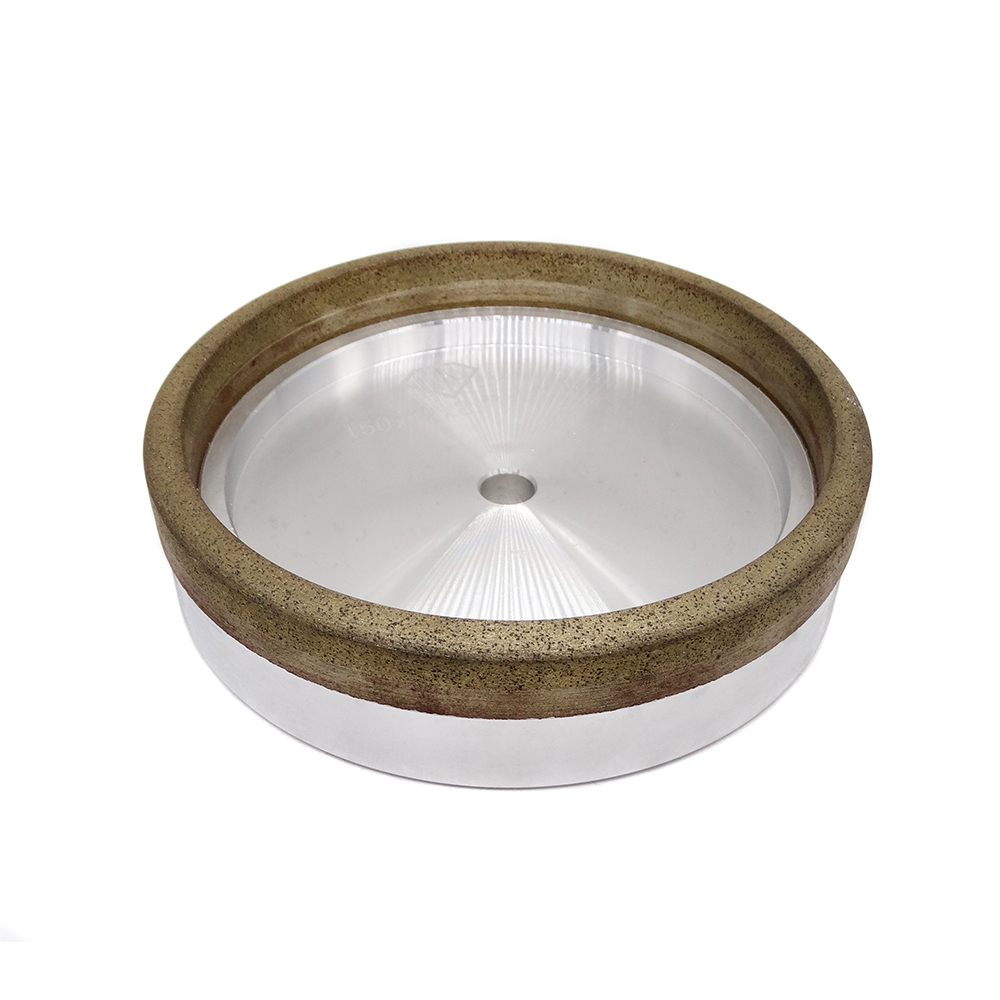

CONTINUOUS DIAMOND GRINDING WHEEL |
||||
|
D (mm) |
W (mm) |
T (mm) |
H (mm) |
Grits (#) |
|
130 |
8 |
8 |
12/22/50 |
80# 100# 140# 180# 240# |
|
130 |
10 |
10 |
||
|
150 |
8 |
8 |
||
|
150 |
10 |
10 |
||
|
Can be customized according to customer needs |
||||
|

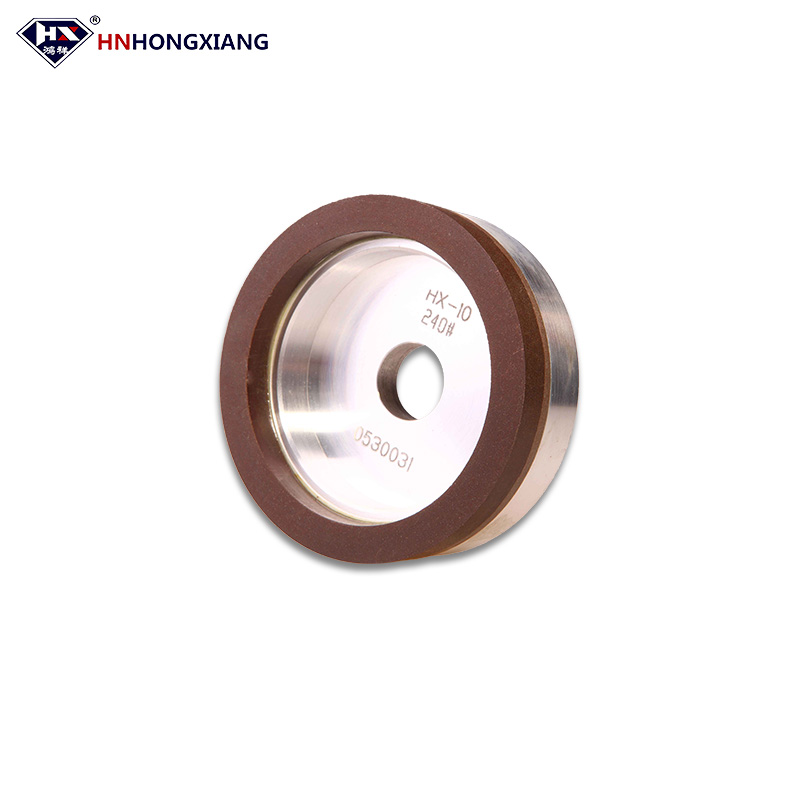

RESIN BOND DIAMOND GRINDING WHEEL (CUP SHAPE) |
||||
|
D (mm) |
W (mm) |
T (mm) |
H (mm) |
Grits (#) |
|
100 |
10 |
10 |
12/22/50 |
180# 240# 320# |
|
130 |
10 |
10 |
||
|
130 |
15 |
10 |
||
|
150 |
10 |
10 |
||
|
150 |
15 |
10 |
||
|
Can be customized according to customer needs |
||||
|
RESIN BOND DIAMOND GRINDING WHEEL (BOWL WHEEL) |
||||
|
D (mm) |
W (mm) |
T (mm) |
H (mm) |
Grits (#) |
|
150 |
15 |
10 |
12/22/50 |
240# 320# 400# 500# 700# |
|
CONTINUOUS DIAMOND WHEELS BOWL SHAPE |
||||
|
D (mm) |
W (mm) |
T (mm) |
H (mm) |
Grits (#) |
|
150 |
15 |
10 |
12/22/50 |
180# 240# 320# |
|

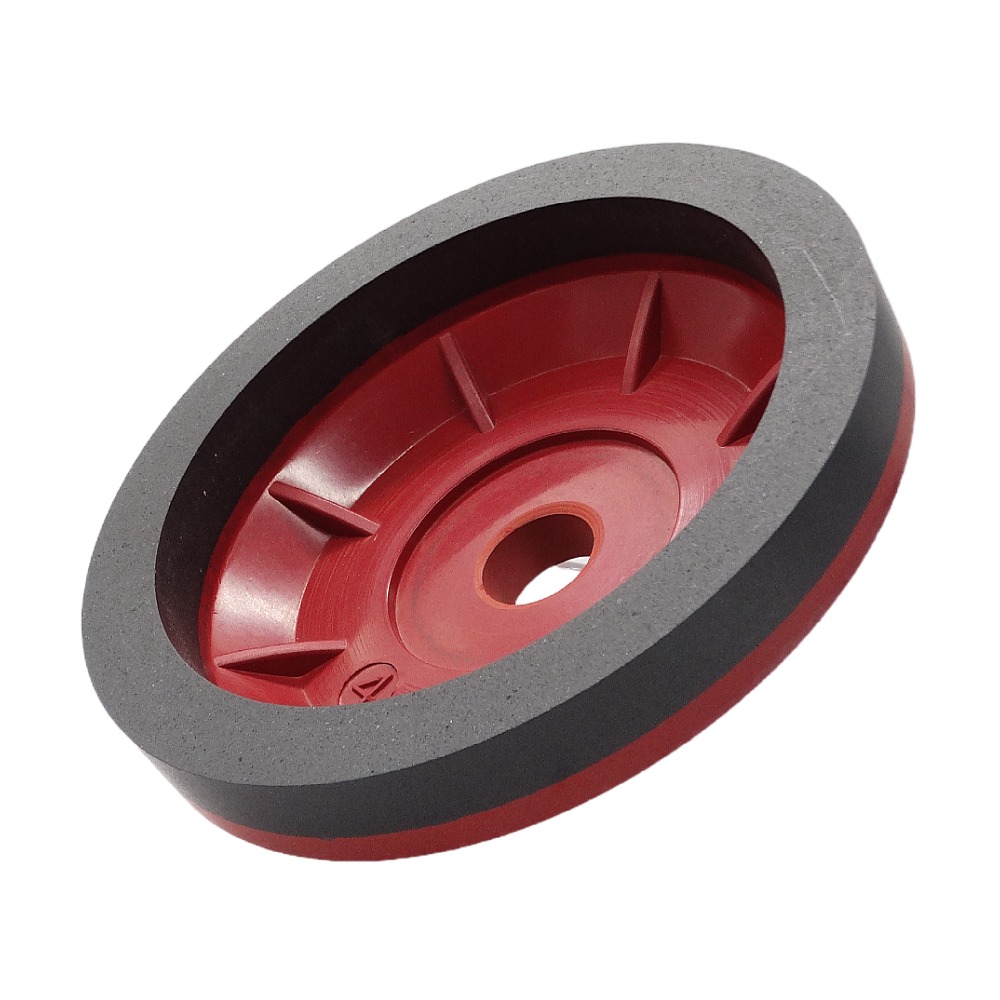

RESIN WHEEL INTERNAL SEGMENTED (CUP SHAPE) |
||||
|
D (mm) |
W (mm) |
T (mm) |
H (mm) |
Grits (#) |
|
150 |
10/15 |
10/12 |
12/22/50 |
240# 320# 400# 500# 700# |
|
Can be customized according to customer needs |
||||
|

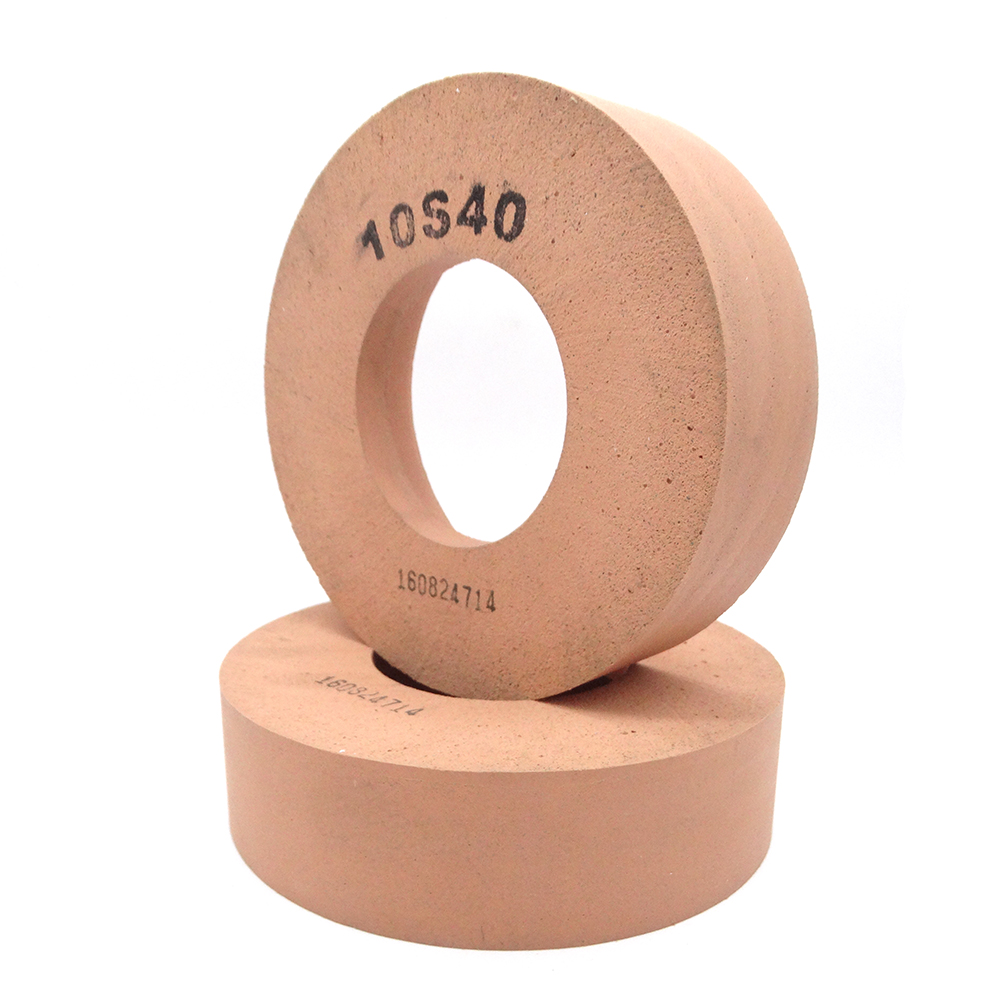

10S POLISHING WHEEL |
||
|
D (mm) |
H (mm) |
Grits (#) |
|
130
|
12/22/60 |
40/60/80/120 |
|
150
|
12/22/70 |
40/60/80/120 |
|
Can be customized according to customer needs |
||
|

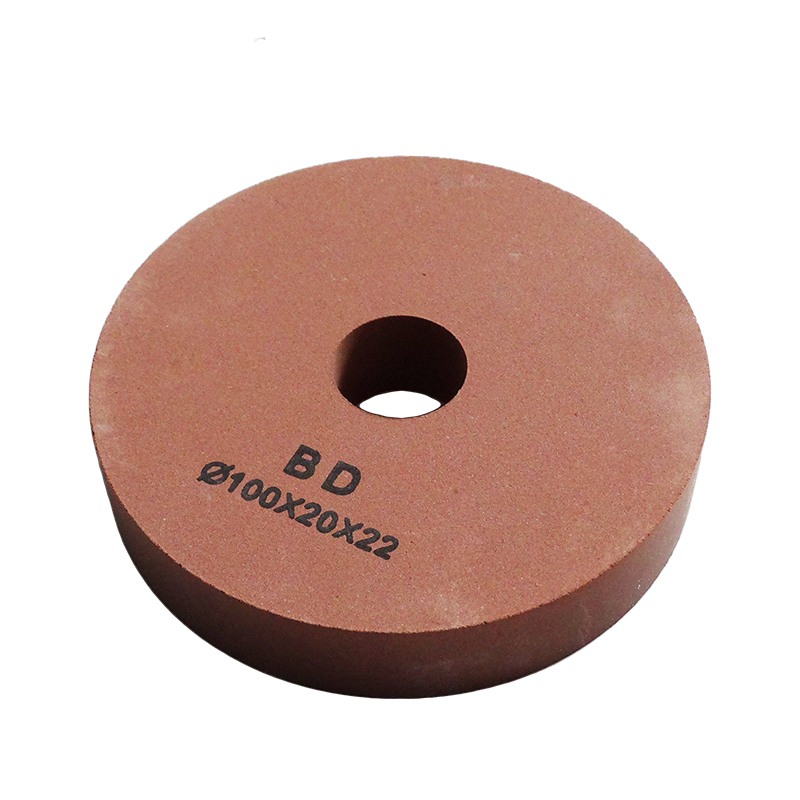

BD POLISHING WHEEL |
||
|
D (mm) |
H (mm) |
T (mm) |
|
100 |
22 |
15/20/25/30 |
|
150 |
22 |
15/20/25/30 |
|
200 |
90 |
15/20/25/30 |
|
Can be customized according to customer needs |
||
|

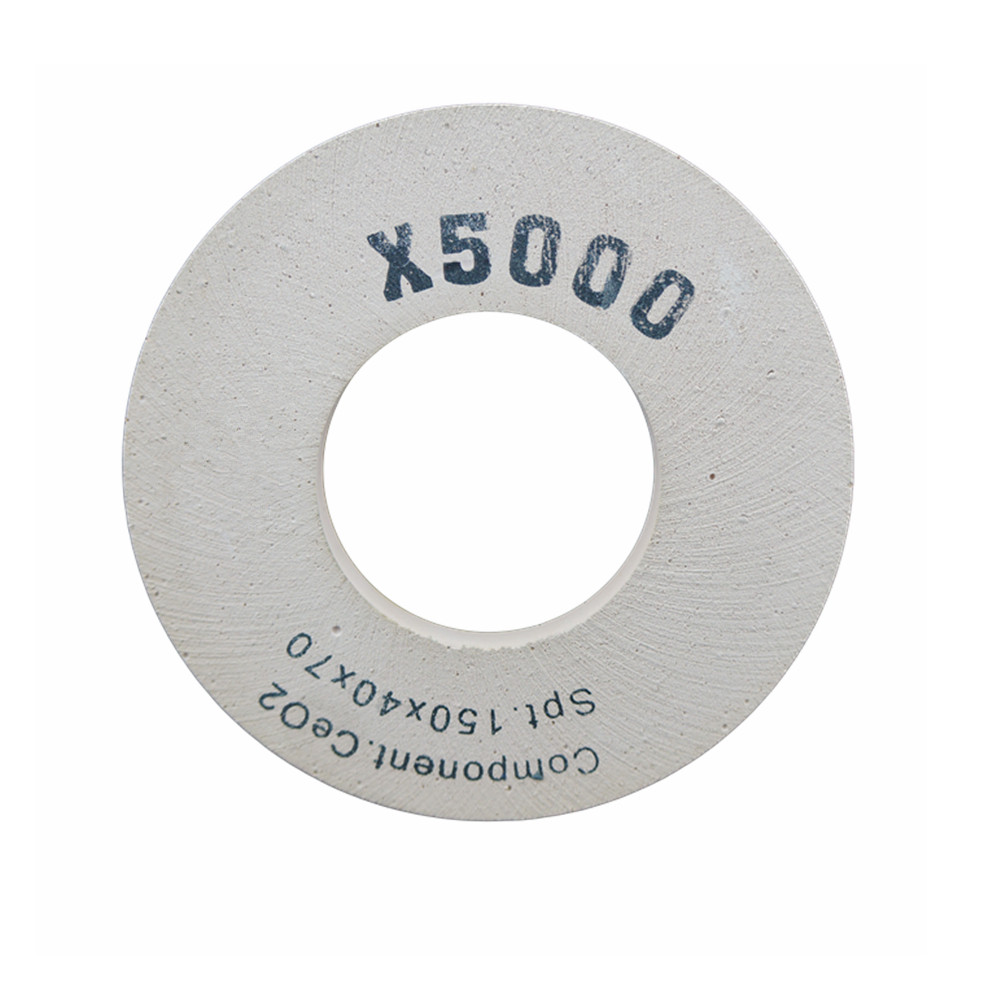

CE3/X5000/X3000 POLISHING WHEEL |
|||
|
D (mm) |
H (mm) |
T (mm) |
H (mm) |
|
150 |
50 |
30 |
12/22/50 |
|
150 |
70 |
40 |
12/22/50 |
|
Can be customized according to customer needs |
|||
|

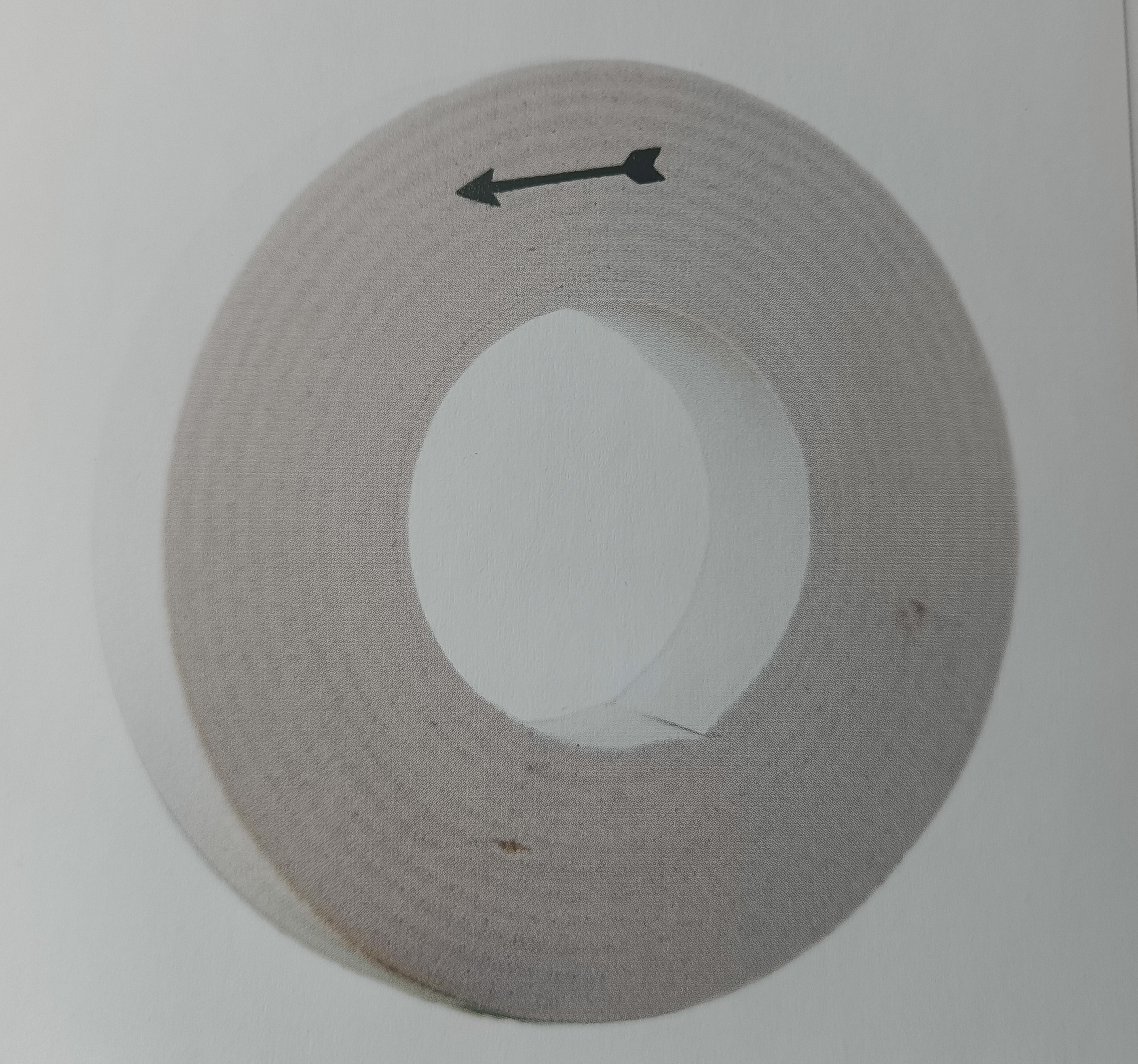

WOOL FELT WHEEL |
||
|
D (mm) |
H (mm) |
T(mm) |
|
150 |
70 |
40 |
|
150 |
105 |
40 |
|
175 |
105 |
40 |
|

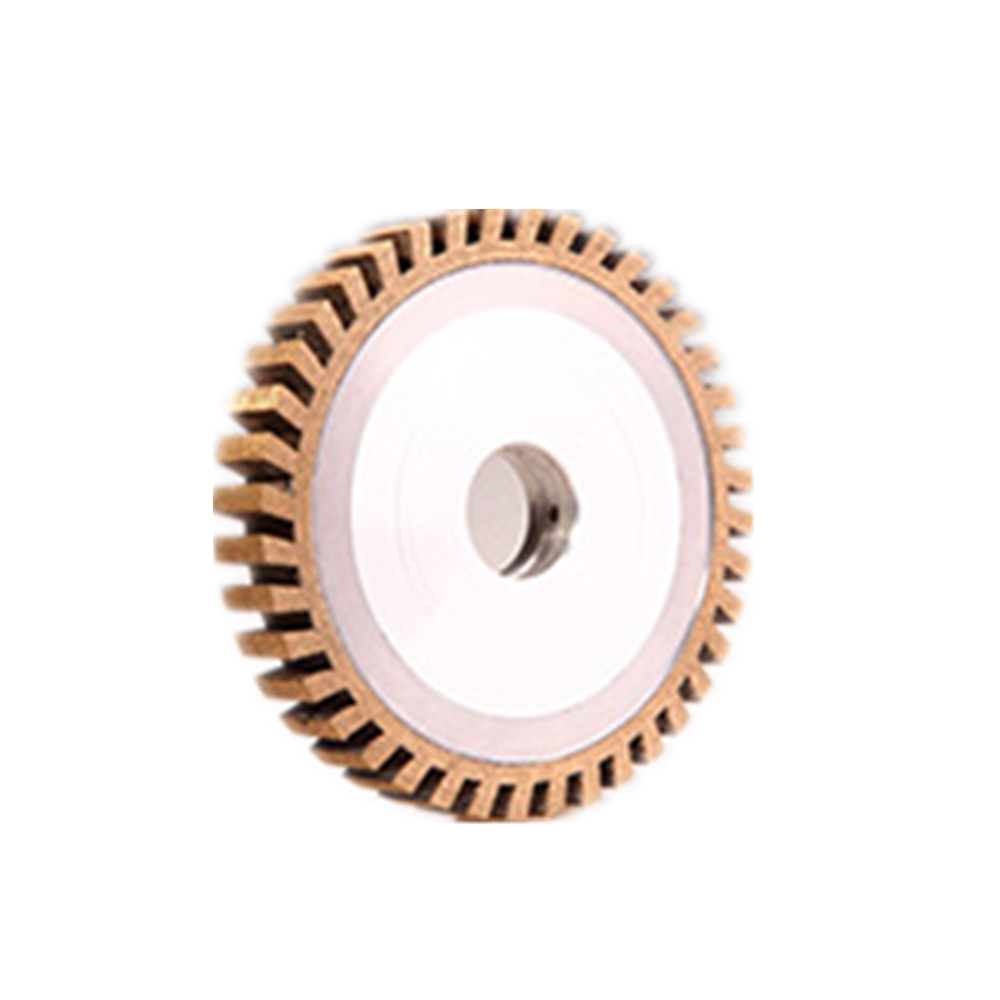

PERIPHERAL SEGMENTED DIAMOND WHEELS |
||
|
D (mm) |
H (mm) |
T(mm) |
|
100 |
22/50 |
6/8/10/12/15/19 |
|
150 |
22/50 |
6/8/10/12/15/19 |
|
DIAMOND GRINDING WHEEL--FLAT |
|||
|
D (mm) |
T(mm) |
H(mm) |
Grits(#) |
|
100 |
3-20 |
22/50 |
80/140/180/240 |
|
150 |
3-20 |
22/50 |
80/140/180/240 |
|
175 |
3-20 |
22/50 |
80/140/180/240 |
|
200 |
3-20 |
22/50 |
80/140/180/240 |
|
DIAMOND GRINDING WHEEL--PENCIL |
|||
|
D (mm) |
T(mm) |
H(mm) |
Grits(#) |
|
35 |
3-20 |
22/50 |
80/140/180/240 |
|
50 |
3-20 |
22/50 |
80/140/180/240 |
|
80 |
3-20 |
22/50 |
80/140/180/240 |
|
100 |
3-20 |
22/50 |
80/140/180/240 |
|
150 |
3-20 |
22/50 |
80/140/180/240 |
|
170 |
3-20 |
22/50 |
80/140/180/240 |
|
200 |
3-20 |
22/50 |
80/140/180/240 |
