Exported Motorcycle Diagnostic Smart Device To Diagnose Tools Motoscan Tab For All motorbikes

- Nowadays technology products are more and more intelligent, modern, especially more friendly to workers, updating new technology of industry 4.0 "integrating things, integrating knowledge, integrating data”

- You are a young generation repairman and have good financial conditions? Do you like to explore and conquer high-end technology? Do you like modern and trendy styles?

- Now your motorcycle repair tools is not only boring hand-held device that it need nice & friendly graphical interface, multi-language, multi-functional, integrating everything in one, voice communication, wireless data connection, global database connection, simple update & sync, trendy "touch screen" control

- DTDAuto would like to introduce a high-end product that analyzes and determines faults of electronic fuel injection motorcycles: MOTOSCAN TAB

- MOTOSCAN TAB researched and manufactured by DTDAuto Vietnam. It used to determine fault and repair electronic & electrical system for most motorbikes and scooters in Asia market and some other market with electronic control system for starting, fuel injection, ignition, ABS, Smart key, ODO, ECU…

Product is designed compactly and integrated all functions “all in one”. It connect wireless with vehicle via Blue-tooth communication and used for diagnosing fault, repair fault for Engine & ABS system; automatic programming smart key system; automatic test ECU inside, automatic engine technical analyzing, intelligent diagnosing without OBD fault code, ODO value correction, ECU signal simulating, programming and upgrading standard software of manufacturer inside ECM, SCU… and many special measurement functions, full-featured for professional motorbike repair workshop. The device is suitable for repairers who like Multi-Media technology, good quality graphics display, abundant lookup, and multimedia connectivity.

- Lookup repair data fast, convenient, smart and object-oriented for most motorcycles of HONDA, YAMAHA, SUZUKI, SYM, KYMCO, PIAGGIO / VESPA manufacturers.

- A gift MOTODATA software used to lookup motorbikes repair data on computer or mobile for 01 year when buy MOTOSCAN TAB.

A. FUNCTION 1: FIND MALFUNCTION

1.1 Read, clear fault codes stored in ECUs of the engine system and ABS system
1.2 Find complex faults that MIL lamp does not indicate include such as:
- Diagnose faults by the automatic data analyzing and interviewing the technicians
+ Diagnose faults by the automatic data analyzing and interviewing the technicians
+ Can’t start the engine
+ Down power when accelerating
+ Idling stop fault
+ Fuel consumption
+ Starter is not work
+ Random acceleration
+ Constant acceleration
+ Idling does not work *
+ Hard to start engine *
+ Weak engine
+ Injector mechanical fault
+ Dirty Air filter*
+ Exhaust pipe block*
+ Air hole dirty/block of MAP sensor/Throttle*
+ Intake manifold leak*
Note: The functions with an asterisk (*) may be researched & update in future
- Diagnose faults by analyzing the engine live data and activating the actuators
+ Voltage and open angle of throttle position sensor (TPS)
+ Voltage and value of intake air temperature sensor (IAT)
+ Voltage and value of manifold air pressure sensor (MAP)
+ Voltage and value of engine temperature sensor (ECT)
+ Voltage and value of oxygen sensor (O2S)
+ Value of atmospheric pressure sensor
+ Engine speed (CKP/ NE)
+ Vehicle speed (VSS)
+ Front/rear wheel speed (with ABS system)
+ Status of fuel pump
+ Ignition timing advance (ISA)
+ Fuel injection time (Ti)
+ Starter signal (STP)
+ Status signal of side stand switch (SSTAND-SW)
+ Status Hall sensor
+ Evaporative purge cut solenoid valve output signal (PCS)
+ Output signal active starter relay (ON/OFF)
+ Output signal active PCV
+ Output signal active IACV
+ Output signal active MIL
+ SCS input signal status (service check signal)
+ Open state of step motor (IACV)
+ State of a heater of O2 sensor
+ State of the brake switch
+ State of Start & Stop indicates lamp
+ State of Star t& Stop mode button
+ State of the start button
+ State of pre-positioning
+ Status of direction sensor
+ Status of oil minimum pressure sensor
+ Engine stop command from DSP
+ Battery voltage (BATT)
+ Battery current
+ Short-term fuel trim in closed loop
+ Environmental revision coefficient in closed loop
+ Fault code and total fault codes
+ And other parameters ...
- Activate and reset the actuators: Fuel pump, injector, ignition coil, IACV (ISCV), O2 heater, pump, blower, headlamp, MIL
warning lamp, ABS warning lamp, Immobilizer lamp, Start&Stop lamp, engine oil pressure warning lamp, VVA valve, reset
pre-positioning of crankshaft ...

B. FUNCTION 2: REPAIR FAULT

2.1. Automatically program smart key for HONDA, YAMAHA, SUZUKI:

- Read all KEYID# and ECMID from vehicle SCU
- Program smart key directly with vehicle or without vehicle (SCU is not installed on vehicle) for cases:
+ Register more FOB# for all of the cases
+ Register FOB# when lost all of the FOB#
+ Delete KEYID in SCU memory
+ Synchronize SCU & ECM for all of the cases
+ Inactivate FOB# code in SCU when lost FOB#
+ Check FOB# & SCU
+ Display status of KEY (ON/OFF)
+ Display SCU information
- Restore SCU data from sample data for HONDA (this function is used to repair software inside SCU when SCU data faults)
- Copy data from source SCU to destination SCU for all motorbikes that have Smart key system: HONDA, YAMAHA, SUZUKI (This function
is used to repair, and swap SCU when have SCU hardware/software fault)
- Quick sync SCU & ECM (without FOB) for HONDA: SH, PCX, X-ADV... and equivalent vehicles
List of vehicles as below (include other models which use similar ECMS):

- HONDA: SH 125/150/125D/150D/SM, SH 300i ABS, PCX, SH MODE , LEAD, AIR BLADE, VISION, ADV, X-ADV, FORZA, SUPER CUB, SCOOPY ESP, CLICK, VARIO
- YAMAHA: JANUS 125, EXCITER 155 VVA, GRANDE, NVX 125, NVX 155 Camo, NVX 155 ABS, AEROX, LEXI S, NMX, NMAX, SMAX, XMAX, TMAX, QBIX 125, QBIX 125 S, QBIX 125 ABS
- SUZUKI: GSX R150

2.2. Programming key immobilizer and get out immobilizer ID code for PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, and PEUGEOT, which use similar ECMs) that ECM types: ACII, AC2I, AC5I, AC8I, AC13I, AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I, AC27I, AC32I, AC5I, AC8I, ACI600, AC601, ACI602, ACI603, ACI604, ACI605, ACI606, ACII, MIU1, MIU2, MIU G3/RIU1, MIU4, PGN04/

PGS02/PGR04/PGS05/PGS06/PGT01

Reset immobilizer, register new key when lost all of the keys, register additional keys … by many methods (KEY to IMMO. or IMMO. to KEY)

2.3. Correct and adjust the value of the digital odo-meter

- HONDA: AIR BLADE (2013-2019), AIR BLADE (2020-2022), CB150R (2017-2019), CB300R (2017-2019), CB650R, CBR250, CBR650R, CB650F, CBR650F, CB500X, CBR500R, CB500F, CBR 50RR (2019-2021), CBR150R (2019-2021), FUTURE NEO Fi, FUTURE X Fi, LEAD (2013-2019), LEAD 2020, PCX (2008-2013), PCX (2014-2017), PCX 2018, PCX HYBRID, SH 300i, SH MODE (2013-2019), SH 125/150/125D/150D/SM (2013-2017), SH 125/150/125D/150D/SM (2018-2019), SH 125/150/125D/150D/SM (2020), SCOOPY-I, SCOOPY 2021, SUPER CUP 125 (2021-2021), MSX, GENIO (2019-2021), VISION 2021, VARIO 150, WINNER, WINNER X, X-ADV, DYLAN, ZOOMER X (2013-2017), ZOOMER X (2018-2020), SONIC, WAVE 125 (Thailand), CLICK (2012-2014), CLICK (2014-2017) CLICK (2018-2020), VARIO (2014-2017),

VARIO (2018-2020)
- YAMAHA: ACRUZO , AEROX, LEXI S, LATTE, FREGO, NVX, NMAX, NMX, M-SLAZ (2016-2019), MT-03 (2015-2019), MT-25 (2015-2019), JANUS, TFX, EXCITER (2014-2018), EXCITER (2019-2020), EXCITER 155 VVA, FZ 150, FZ 150i, GRANDE, NOUVO SX, NOUVO LX, YZF-R3 (2014-2018), YZF-R25 (2014-2018), R15, X-MAX 300 (2017-2018), TMAX
- PIAGGIO: MEDLEY 125, MEDLEY 150, MEDLEY 125 ABS, MEDLEY 150 ABS, LIBERTY ABS, LIBERTY 125 3V PGN04, LIBERTY 150 3V PGN04, LIBERTY 125 3V PGT01, LIBERTY 150 3V PGT01, LIBERTY 125 3V PGS02/PGR04/PGS05/PGS06, LIBERTY 150 3V PGS02/PGR04/PGS05/PGS06, LIBERTY ABS PGS06
- VESPA: PRIMAVE 125 PGN04, PRIMAVE 150 PGN04, SPRINT 125 3V PGN04, SPRINT 150 3V PGN04, SPRINT 125 3V PGT01, SPRINT 150 3V PGT01, SPRINT 125 3V PGS02/PGR04/PGS05/PGS06, SPRINT 150 3V PGS02/PGR04/PGS05/PGS06
- SUZUKI: RAIDER (2017-2021), SATRIA (2017-2021)
Edit, decode data, and convert information automatically in EEPROM

2.4 Reprogram and upgrade ECM firmware, remap/ tuning ECM, and adjust the A/F ratio

- Reprogram and upgrade ECM firmware for:

- HONDA: AIR BLADE 110, AIR BLADE 125/150, DREAM 110i, FUTURE X FI, FUTURE 125 FI, SH 125/150, SONIC 150, WINNER 150, WINNER X, FUTURE X 2019, FUTURE 2014 -2017, LEAD 110, LEAD 125, PCX (2015-2019), MSX, MONKEY 125i, PS, SCR 110, SCOOPY-I, SONIC 150, SH 125i/150i (nhập khẩu), SH 125/150 ESP, SH 300I, SH MODE, SUPER CUB 50 2019, SUPRA, WAVE 125, WAVE 125-i (Thailand), CLICK, VARIO, VISION 110, SCR 110, WAVE 100i, WAVE 125/ 125i, WAVE RSX FI, WINNER 150, WINNER X...
- PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs): ECM types are AC19I/AC20I/AC24I/AC25I/ AC27I/AC32I, MIU G3/RIU1 and ECM PGN04/PGS02/PGR04/

PGS05/ PGS06/PGT01

- Calibrate air/fuel ratio (AFR) for YAMAHA, PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs), SYM, KYMCO
- Calibrate air/fuel ratio (AFR) for HONDA by ECM remapping & tuning. Write data to ECM by option user self for:

HONDA: AIR BLADE 110, AIR BLADE 125/150, DREAM 110i, FUTURE X FI, FUTURE 125 FI, SH 125/150, SONIC 150, WINNER 150, WINNER X, FUTURE 2014 -2017, FUTURE X 2019, PCX (2015-2019), LEAD 110, LEAD 125, MSX, MONKEY 125i, PS, SCR 110, SCOOPY-I, SONIC 150, SH 125i/150i (Italia), SH 125/150 ESP, SH 300I, SH MODE, SUPER CUB 50 2019, SUPRA, WAVE 125, WAVE 125-i (Thailand), CLICK, VARIO, VISION 110, SCR 110, WAVE 100i, WAVE 125/ 125i, WAVE RSX FI, WINNER 150, WINNER X

- Reset to manufacturer value of ECM: HONDA, YAMAHA, PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, PEUGEOT, which uses similar ECMs)
- Offset zero point value and set range of throttle position sensor for PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs)
- Synch and control IACV for HONDA, YAMAHA, PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs), KYMCO
- Adjust pulse bandwidth to control fuel injectors (Ti) and idle speed: YAMAHA, SYM
- Create new and repair data errors, upgrade the version MCU, EEPROM
- Set altitude mode for some models of YAMAHA

2.5 Check hardware, software, operability, and quality of components inside ECM (ECU tester function) (this is optional)
Test quantity of ECMs for HONDA, YAMAHA, PIAGGIO/VESPA according to the order
List of vehicles as below (including other models which use similar ECMS) (list of vehicles will continue to update):
- HONDA: AIR BLADE 2008-2010, AIR BLADE 2011-2012, AIR BLADE (2013-2014), AIR BLADE (2015-2017), AIR BLADE (2018-2019), LEAD 110 (before 2012),LEAD 110 (2012), LEAD (2013-2014), LEAD (2015-2017), LEAD (2018-2019), SH 125/150 (2013-2014), SH 125/150
(2015-2016), SH 125/150 (2017-2019), PCX (2015-2017), PCX (2018-2019), VISION (2013-2017),

VISION (2018-2020), VARIO (2014-2017), VISION 2011-2012, FUTURE X FI, FUTURE NEO FI, FUTURE 125 FI, WAVE 110i (Thailand), WAVE 125i (Thailand), WAVE RSX FI, WAVE RSX FI AT vv...
- YAMAHA: NOUVO SX , SIRIUS 2016, EXCITER 2018, JUPITER FI, EXCITER 2019

2.6 Check Hall CKP sensor and IACV/ ISCV (this is optional)
Use for all HONDA, YAMAHA, PIAGGIO/ VESPA motorbikes

2.7 Simulate the Input/Output signal of ECU to support diagnosing faults and repairing ECU hardware

C. FUNCTION 3: SPECIALIZED MEASURE TOOL

3.1 Fast measure and assess the capacity, and quality of the battery
3.2 Reviewed charging status and rated the quality of the generator, regulator
3.3 Measure the air/fuel ratio (A/F) to assess the instantaneous fuel consumption
3.4 Measure engine speed (RPM) for all carburetors and PGM-FI/FI with DIY ECU motorbikes

D. FUNCTION 4: LOOKUP REPAIR DATA
4.1 Look up the acronym, and position of signal pins for systems: ECM, SCU, ACU, ODO, IMMO, SMART KEY
4.2 Look up electrical wiring diagram: principle diagram, schematic assembly, and specified conditions
4.3 Look up the process assembly, repair, maintenance mechanic, oil warning lamp reset
4.4 Update software and data via the Internet

- The device is suitable for repairmen who like technology, do not like traditional, monotonous, classic, and boring hand tools
- People like Muti-Media technology, Big data, IoT ... good graphics, impressive and multimedia connection
- A safety test device for motorcycle and private car clubs

● ADVANTAGE
- In-depth features, application range compatible with most small motorbikes and scooters in the Asia market
- A safe and convenient solution support CAN bus and K-Line protocol
- Simple operation with keypad direct on handhelds (without a computer)
- Equipment has integrated compact, designed beautiful, professional, high-strength mechanics
- Effective, fast, accurate, reliable, detailed
- Lookup more detailed information for repairs by the MOTODATA
- Technical support consultant directly from the manufacturer by SMS through Skype, Yahoo, WhatsApp, Zalo, Email, Teamviewer
- Update via the Internet
- 12 months warranty and maintenance as required
- Low price

● SOME INTERFACE IMAGES

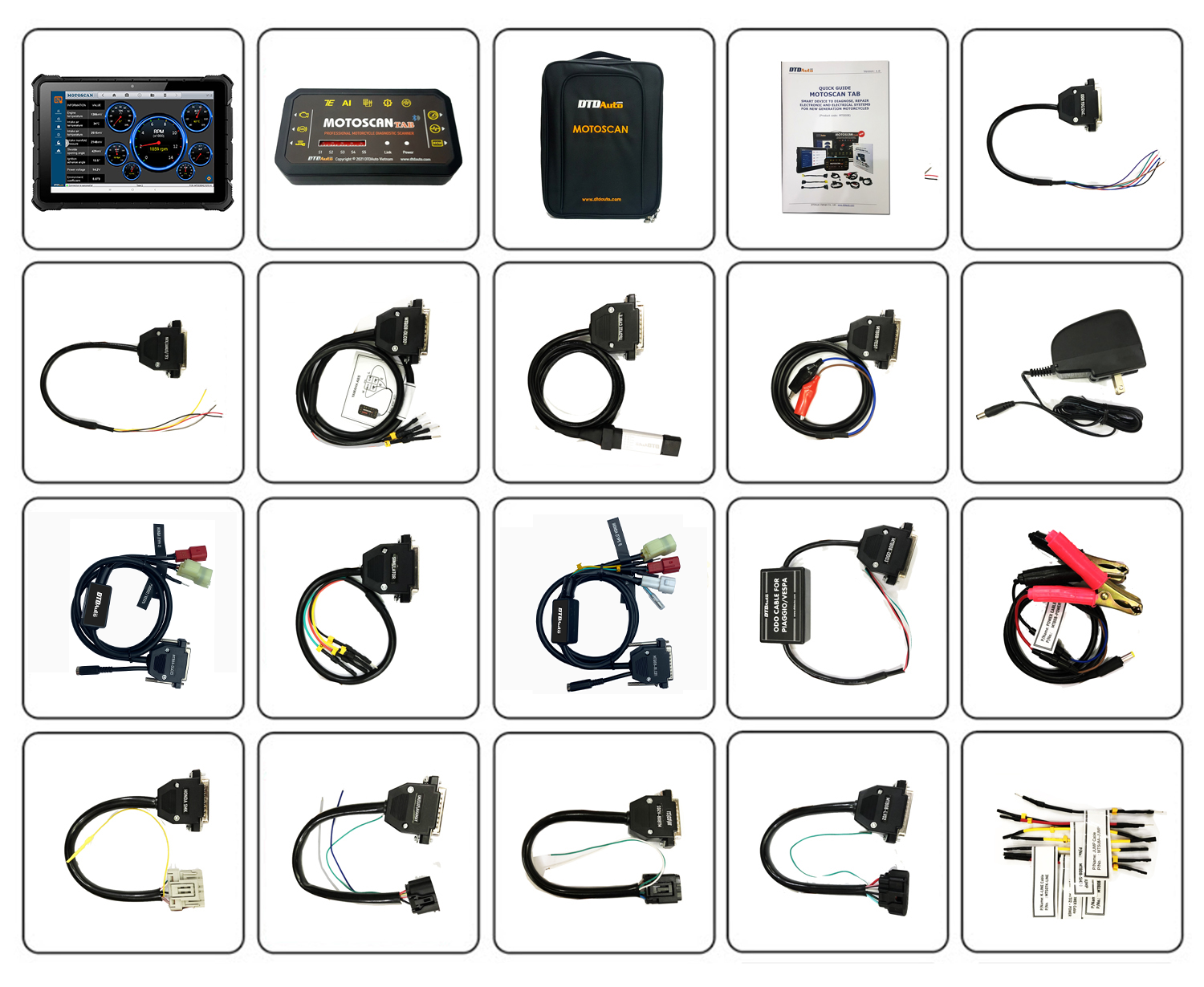

● EXTRA PACKAGE
