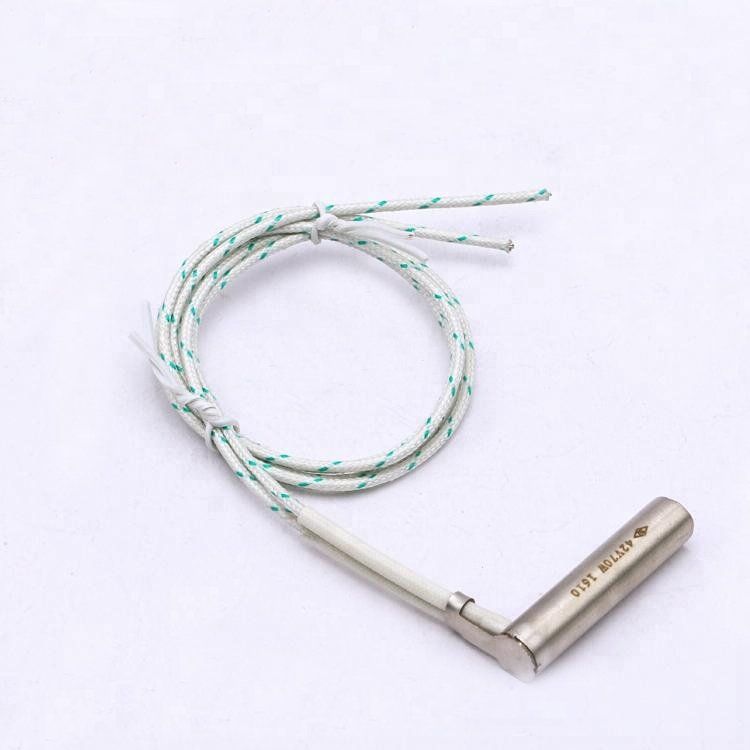

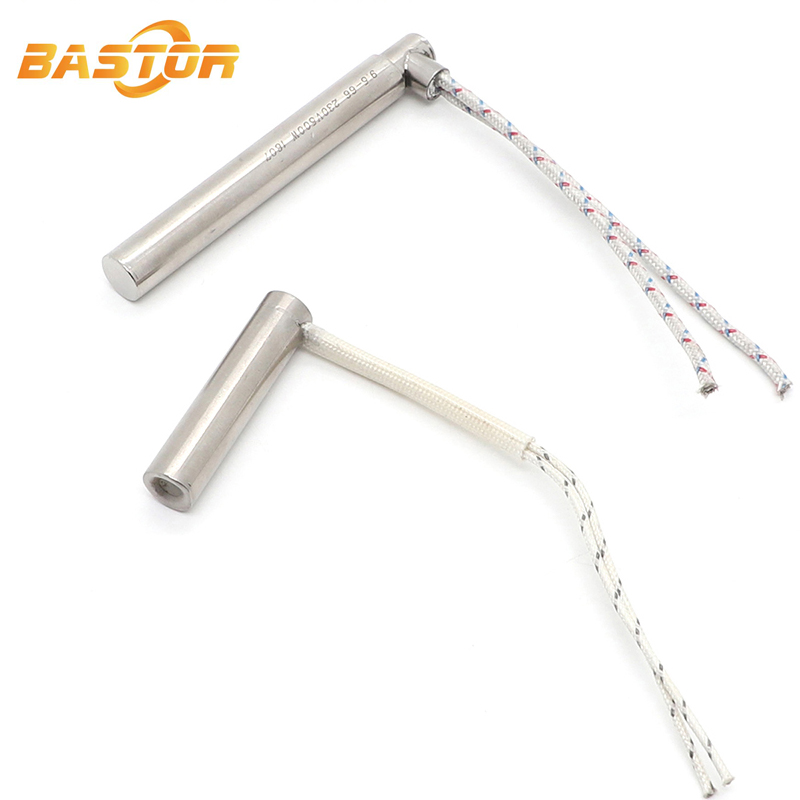

Product Description
Advantages
Internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.
External wiring: high temperature resistance, uniform heating and high thermal conductivity.
Date sheets
|
Resistance heating wire |
NiCr 80/20 wire |
|
Wattage Tolerance |
+5%, -10% |
|
Resistance tolerance |
+10%, -5% |
|
Length tolerance |
±1 mm |
|
Diameter tolerance |
± 0.02mm |
|
Standard Cold Zone |
5-10mm |
|
Insulation resistance (cold) |
≥ 500 MΩ |
|
Maximum leakage current (cold) |
≤ 0.5 mA |
|
Thermocouple Location |
type J / K / Ground wire |
Internal wiring port section of the heating tube does not adopt the terminal connection mode.
Making it havhigh temperature resistance and strong mechanical properties.
The port part of the heating tube adopts terminal connection mode Is resistant to
high temperature and works in the heating medium which can not conduct wiring at both ends.
Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1.5KV 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
Application
