Product Description
I. REINFORCING CONCRETE WELDED MESH:
- Wire mesh is made from cold drawn high yield strength wire rods.
- Wire mesh is produced by the automatic welding machine ensuring consistent mesh spacing.
II. SPECIFICATION:
- Diameter of wire rods Ø6 ~ Ø13
- Size of wire mesh (w x L) 1.2 ~ 2.4 x 6m (up to 12m length)
- Spacing 100 ~ 250mm
| NO. |
PRODUCT (Sheet 2.4x6m) |
MAIN WIRE | CROSS WIRE | MASS PER UNIT AREA | MASS PER PIECE | |||
| Size (mm) |
Spacing (mm) |
Size (mm) |
Spacing (mm) |
(kg/m2) | (kg/pc) | |||
| SQUARE MESH | ||||||||
| 1 | @100 | 4 | 100 | 4 | 100 | 1.97 | 28.41 | |
| 2 | 5 | 100 | 5 | 100 | 3.08 | 44.40 | ||
| 3 | 6 | 100 | 6 | 100 | 4.44 | 63.92 | ||
| 4 | 7 | 100 | 7 | 100 | 6.04 | 87.00 | ||
| 5 | 8 | 100 | 8 | 100 | 7.89 | 113.64 | ||
| 6 | 9 | 100 | 9 | 100 | 9.99 | 143.83 | ||
| 7 | 10 | 100 | 10 | 100 | 12.33 | 177.57 | ||
| 8 | 11 | 100 | 11 | 100 | 14.92 | 214.85 | ||
| 9 | 12 | 100 | 12 | 100 | 17.76 | 255.69 | ||
| 10 | @150 | 4 | 150 | 4 | 150 | 1.32 | 18.94 | |
| 11 | 5 | 150 | 5 | 150 | 2.06 | 29.59 | ||
| 12 | 6 | 150 | 6 | 150 | 2.96 | 42.61 | ||
| 13 | 7 | 150 | 7 | 150 | 4.03 | 58.00 | ||
| 14 | 8 | 150 | 8 | 150 | 5.26 | 75.76 | ||
| 15 | 9 | 150 | 9 | 150 | 6.66 | 95.89 | ||
| 16 | 10 | 150 | 10 | 150 | 8.22 | 118.38 | ||
| 17 | 11 | 150 | 11 | 150 | 9.95 | 143.24 | ||
| 18 | 12 | 150 | 12 | 150 | 11.84 | 170.47 | ||
| 19 | @200 | 4 | 200 | 4 | 200 | 0.99 | 14.20 | |
| 20 | 5 | 200 | 5 | 200 | 1.54 | 22.19 | ||
| 21 | 6 | 200 | 6 | 200 | 2.22 | 31.97 | ||
| 22 | 7 | 200 | 7 | 200 | 3.02 | 43.50 | ||
| 23 | 8 | 200 | 8 | 200 | 3.95 | 56.82 | ||
| 24 | 9 | 200 | 9 | 200 | 4.99 | 71.91 | ||
| 25 | 10 | 200 | 10 | 200 | 6.17 | 88.78 | ||
| 26 | 11 | 200 | 11 | 200 | 7.46 | 107.42 | ||
| 27 | 12 | 200 | 12 | 200 | 8.88 | 127.84 | ||
| 28 | @250 | 4 | 250 | 4 | 250 | 0.79 | 11.36 | |
| 29 | 5 | 250 | 5 | 250 | 1.23 | 17.76 | ||
| 30 | 6 | 250 | 6 | 250 | 1.78 | 25.57 | ||
| 31 | 7 | 250 | 7 | 250 | 2.42 | 34.80 | ||
| 32 | 8 | 250 | 8 | 250 | 3.16 | 45.46 | ||
| 33 | 9 | 250 | 9 | 250 | 4.00 | 57.53 | ||
| 34 | 10 | 250 | 10 | 250 | 4.93 | 71.02 | ||
| 35 | 11 | 250 | 11 | 250 | 5.97 | 85.94 | ||
| 36 | 12 | 250 | 12 | 250 | 7.10 | 102.28 | ||
III. TECHNICAL INFORMATION:
- Tensile strength of wire rods 460 ~ 650 Mpa
- Minimum shear strength at intersection 250 MPa

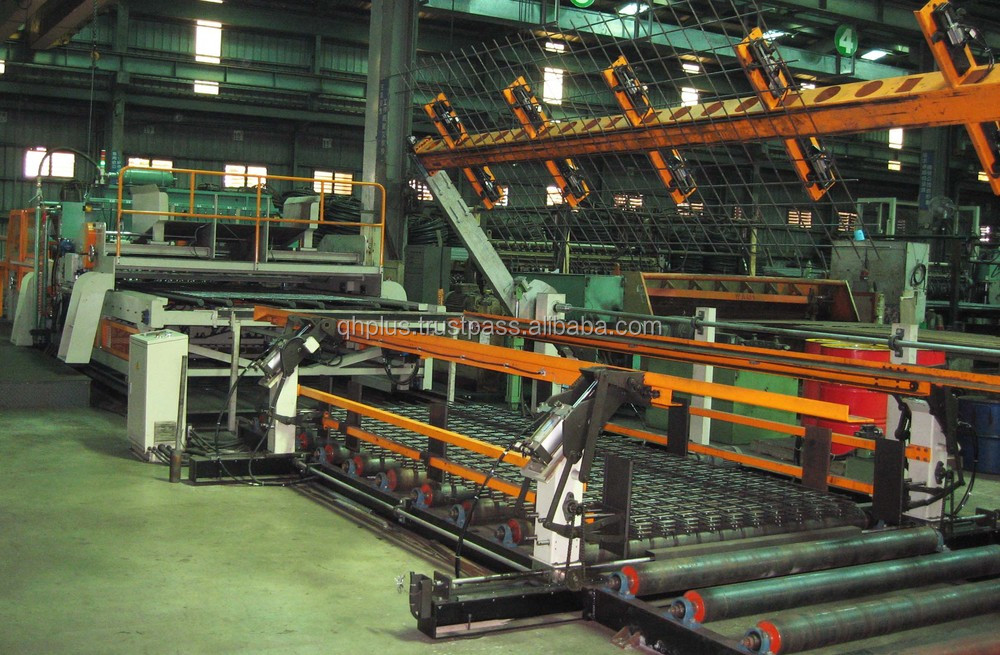

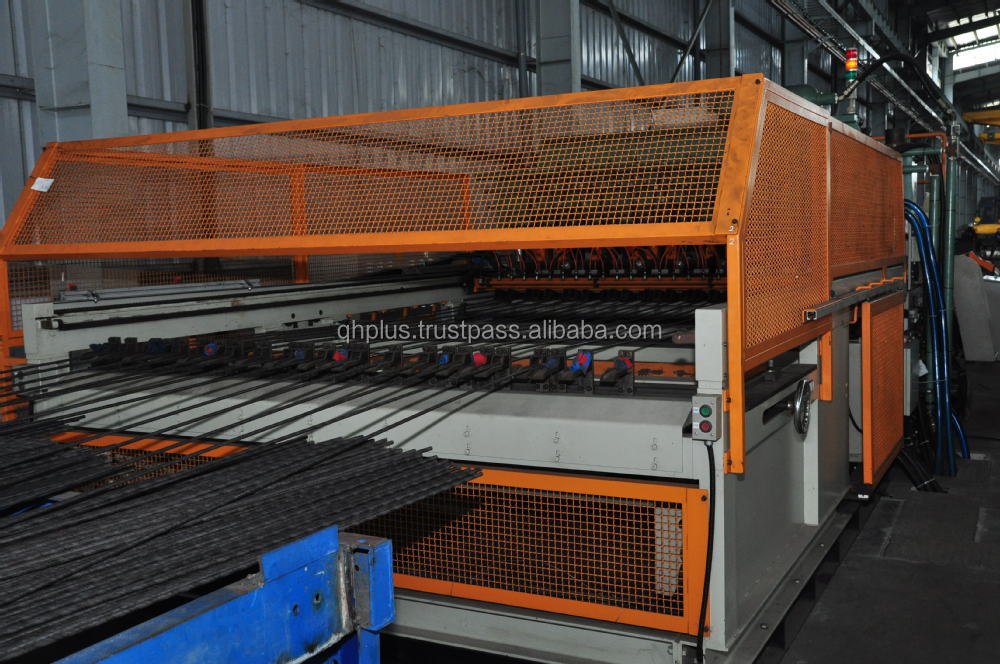

PRODUCTION IMAGES:
IV. WELDED MESH ADVANTAGES:
- Shorten implementation time; thereby gaining economic advantages
- Replace manual production with higher productivity
- Customize in accordance with customers requests
- Reduce losses and quality deterioration of steel materials
- Ensure the progress of projects
- Enhance the ease of transportation, installation and replacement
V. CERTIFICATIONS:
Wire mesh is produced in accordance with the International standards.
- British Standard BS4483:1998 - Welded mesh used for reinforcement
- Australian Standard AS/NZ/4671 - Cold drawn wire rods used for reinforcement
- American Standard ASTM 185:1994 - Welded mesh made from deformed bars or wire rods used for reinforcement
- Vietnamese Standard TCVN 267:2002 - Welded mesh used for reinforcement
