Product Details

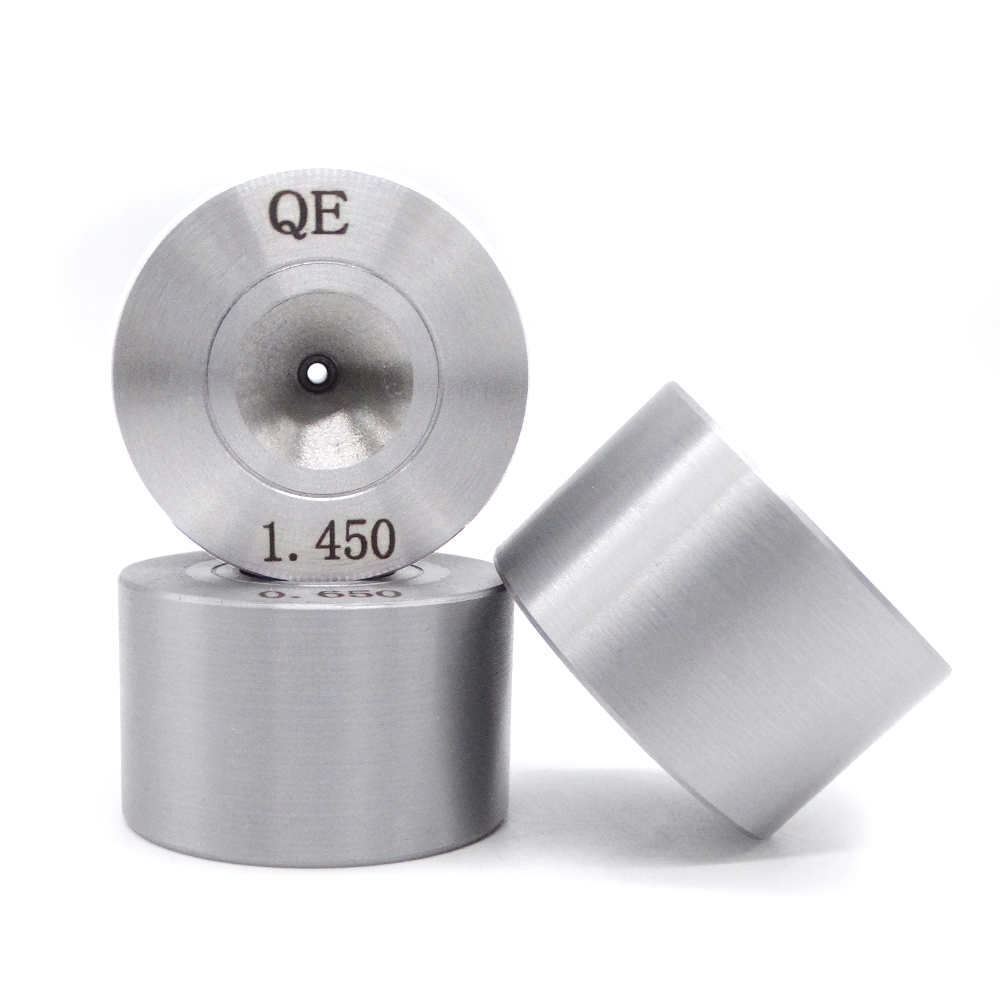

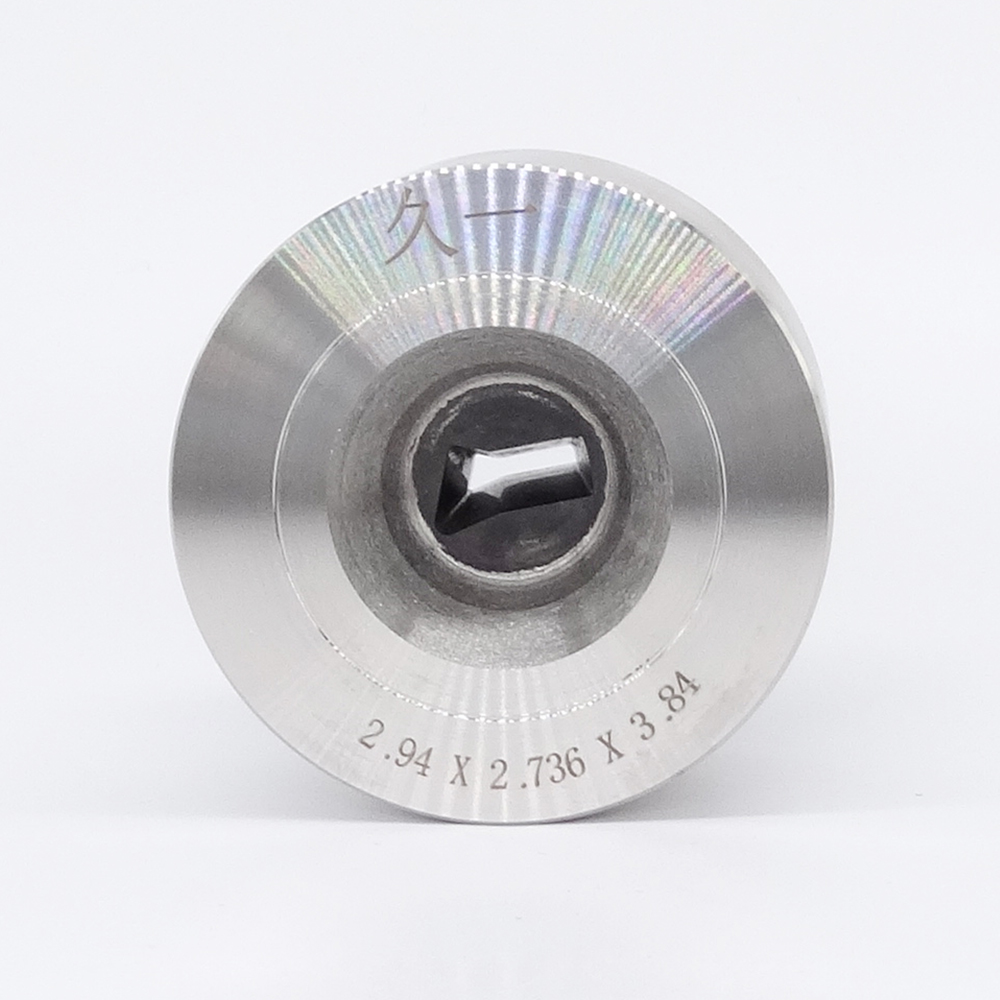

Polycrystalline Diamond Wire Drawing Dies
Reliable quality and competitive price
Customized design and processing;
A variety of your parameters drawing accurately;
Delivery safely and quickly.

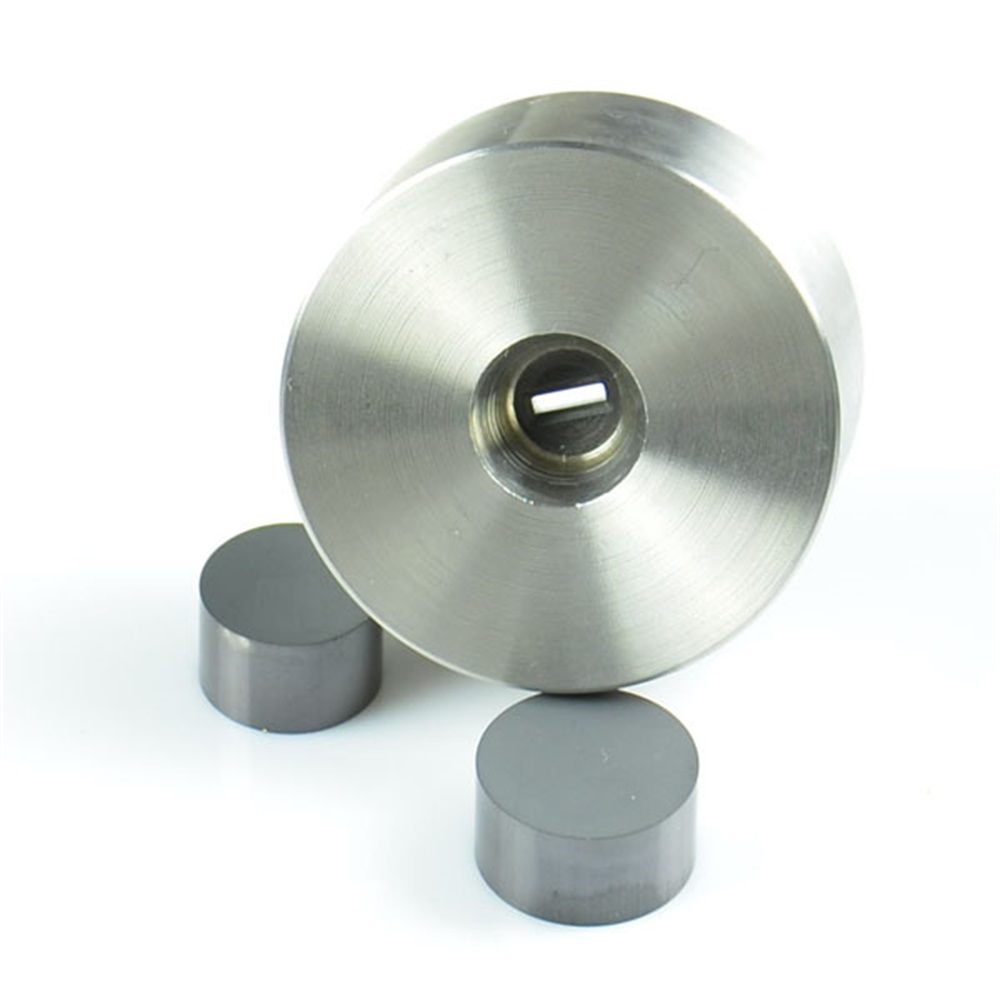

Polycrystalline diamond wire drawing die: Long die life, high production efficiency, can be used in all wet drawing and dry drawing processes. Aperture range: 0.05mm-20mm. Wide application range: flexible wire: copper wire, aluminum wire, brass wire, gold wire, aluminum-magnesium alloy, copper-clad steel wire, etc. Hard wire: stainless steel wire, copper-plated steel wire, copper-plated wire, tungsten wire, molybdenum wire, cutting wire, chromium wire, nickel wire, etc.
|
Size Range(soft Wire) |
Mini Tolerance |
Case Diameter |
Case Height |
|
0.1-0.5 |
±0.001 |
25/28 |
8/10 |
|
0.5-0.8 |
±0.003 |
25/28 |
8/10 |
|
0.8-1.0 |
±0.003 |
25/28 |
8/10/12 |
|
1.0-1.5 |
±0.003 |
25/28 |
10/12 |
|
1.5-1.8 |
±0.003 |
25/28/30 |
10/12/15 |
|
1.8-2.3 |
±0.005 |
25/28/30 |
12/14/15 |
|
2.3-2.9 |
±0.005 |
25/28/30 |
12/14/15 |
|
3.0-3.2 |
±0.005 |
35/40 |
20/25 |
|
3.2-3.4 |
±0.01 |
40/50/60 |
23/25/27 |
|
3.4-4.0 |
±0.01 |
40/50/60 |
23/25/27 |
|
4.0-5.0 |
±0.01 |
40/50/60 |
23/25/27 |
|
5.0-6.5 |
±0.01 |
40/50/60 |
23/25/27 |
|
6.5-8.0 |
±0.015 |
40/50/60 |
23/25/27 |
PRODUCT ADVANTAGES
Why choose us?
Long history, Rich experience
Since 1990, we have more over 30 years history, and have accumulated much experience on copper bus bar drawing carbide die manufacturer and production.
Large scale, Standard center
Our company occupies 200 acres and the total plant area is more than 70,000 square meters, including eight standard workshops, one office building and one research building. It is also a provincial engineering technology center..
Good service, High quality
We have professional service team. Not only can we help you receive diamond wire drawing dies apply for die blanks for wire drawing, but also supply more friendly and warm service for you.
Many certificates, Professional study
We have receiced many national and local awards patent certificate and obtaining many invention patents. and has an independent research and development organization in cooperation with Henan University of Technology and Zhengzhou University.
International famous, Powerful advantage
Wire drawing dies for copper wire, gold wire, silver wire, aluminum wire, and brass bar, etc, which are exported to more than 200 countries and regions. And the company participates in domestic and international exhibitions many times.
Zhecheng Hongxiang Superhard Material Co., Ltd.
We are a manufacturer and wholesaler of diamond and CBN (cubic boron nitride) abrasives and tools. Based on excellent product quality, we strive to provide our customers with three better concepts: better products, better prices and better services.
The drawing dies produced by our factory are of high quality, long life and reasonable price. The filament drawn using our company's drawing die has the characteristics of good surface finish and high drawing efficiency. Various types of wire drawing dies of various materials and sizes can be customized. For more details, please contact customer service.
