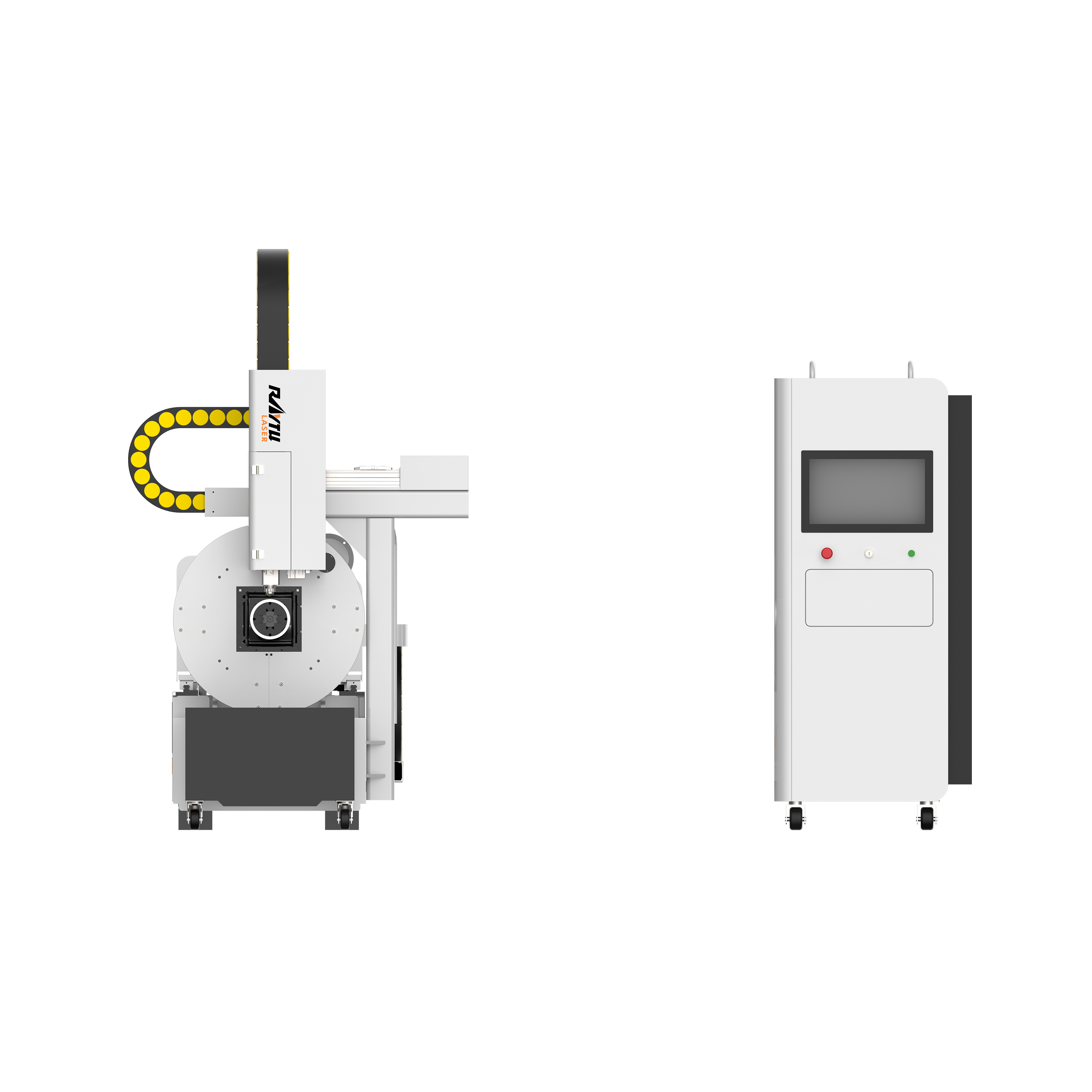

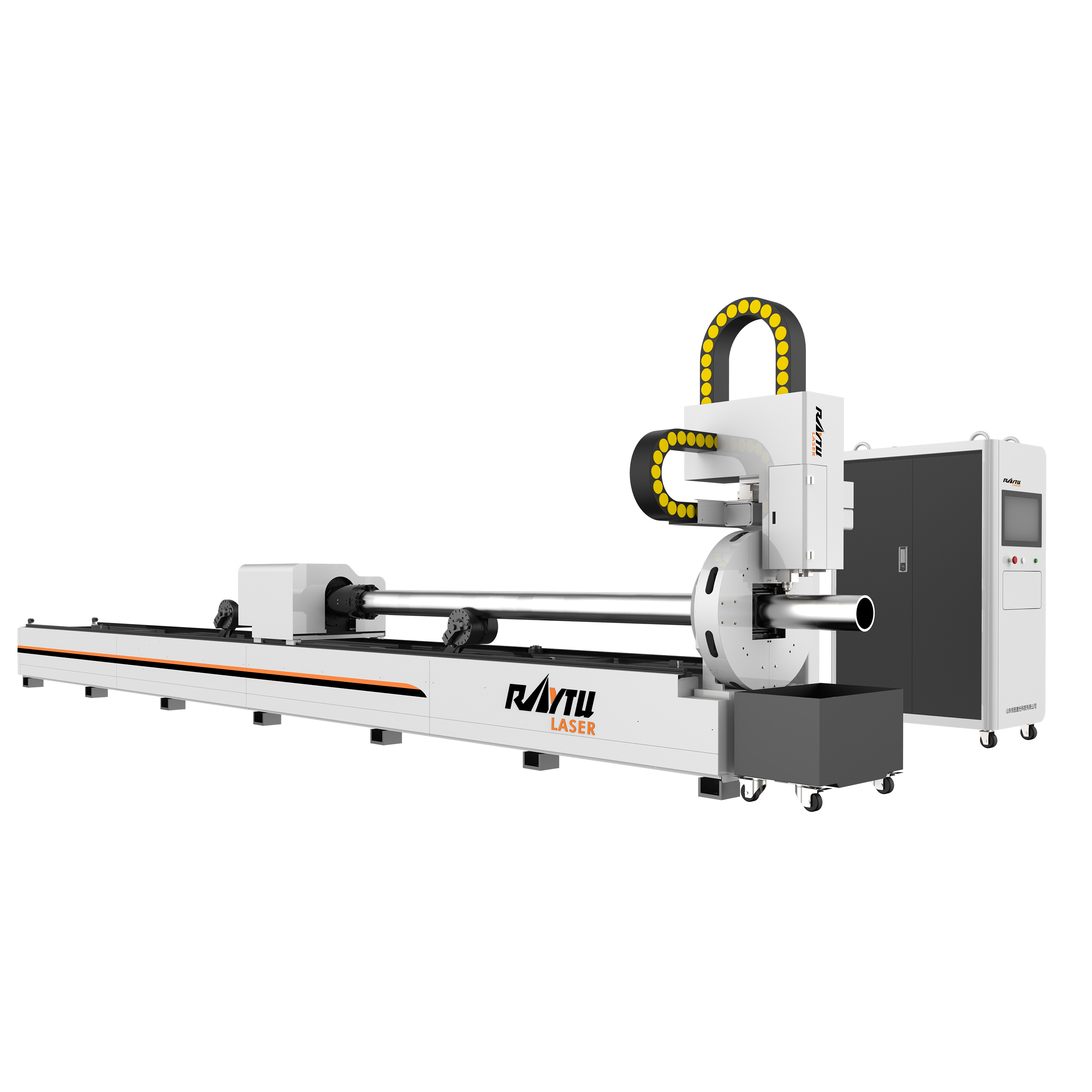

China Factory direct sale 1500W 3000w T modal Professional metal pipe cutting machine with Water Cooling

Fiber Laser

1.Electro-optical conversion efficiency up to 30%.
2. They are excellent beam quality, high energy density, and reliability, a wide modulation frequency;
3. 100,000 hours of lifetime, free maintenance; Low energy consumption, only 20%-30% of the traditional CO2 machine.

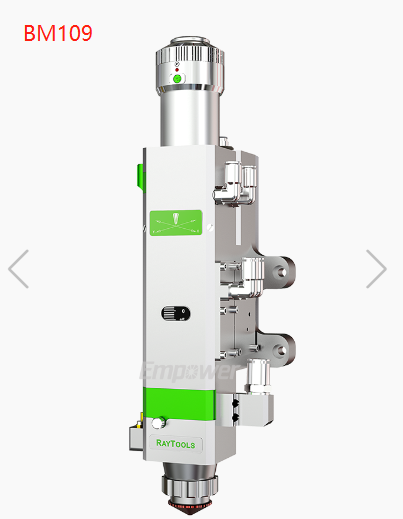

Laser Head

1. Optimized design structure: modularization, easy maintenance, and reduced downtime.
2. Multiple protective lenses: 3 protective lenses, efficient protection of collimating focusing lenses.
3. Durable and durable: 2-way optical water cooling, effectively extending continuous working time.
4. Closed-loop step-by-step automatic focusing: A closed-loop stepper motor is used to effectively avoid losing steps. The
focusing speed is 100mm/s, and the repeatability is 1μm.
5. Fast piercing High speed cutting: 16mm low carbon steel, piercing time <6 seconds, cutting speed 0.6m/min.

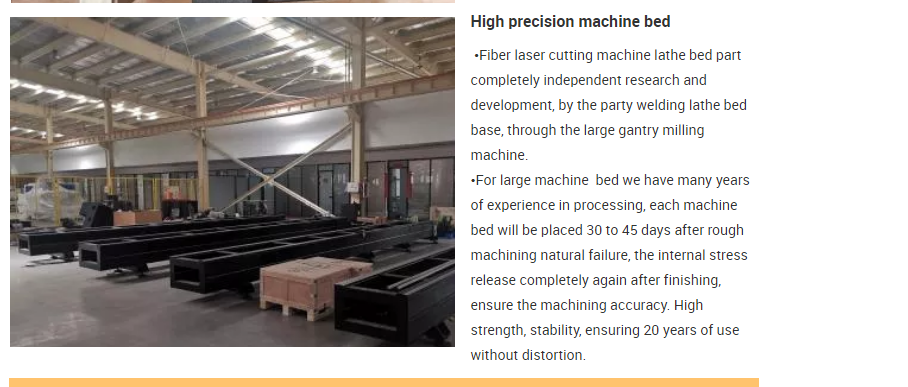

High precision machine bed

1. Fiber laser cutting machine lathe bed part completely independent research and development, by the party welding lathe bed
base, through the large gantry milling machine. 2. For large machine bed we have many years of experience in processing, each
machine bed will be placed 30 to 45 days after rough machining natural failure, the internal stress release completely again after
finishing, ensure the machining accuracy. High strength, stability, ensuring 20 years of use without distortion.

Water Chiller

1. Automatically adjust the temperature according to different working environment, no need to change settings parameters. Reduce
the temperature of the laser source and the laser head through water circulation, thereby protecting these two main parts.
2. The chiller has functions such as water flow protection and water temperature protection. If the chiller is not opened or the
water flow is insufficient, the laser will not be generated when the water temperature is too high, so as to protect the laser.
