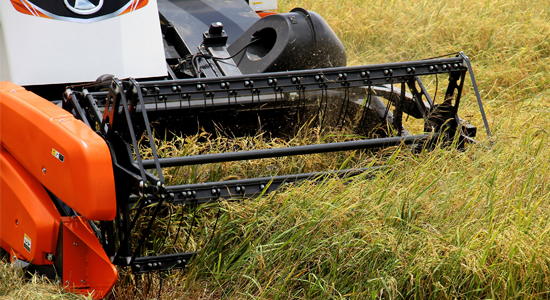

SPICIFICATION COMBINEHARVERTOR DC 70
| MODEL | DC-70 | ||
| Size | Overall length mm | 4800 | |
| Overall width mm | 2260 | ||
| Overall height mm | 2880 | ||
| Weight (kg) | 3000 | ||
| Engine | Model | V2403-M-DI-TE2-CSKC | |
| Type | vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesel engine | ||
| Total displacement L[cc] | 2.434[2434] | ||
| Rated output/rpm ps[kw]/rpm | 70/2700 | ||
| Fuel | diesel oil | ||
| Fuel tank capacity L | 85 | ||
| Starting method | starter motor | ||
| Battery V.Ah | 12/52 | ||
| Travel unit | Track | Ground length × width mm | 500X1700 |
| Centre distance mm | 1300 | ||
| Average ground pressure kpa[kgf]/cm2 | 17.3 0.18 | ||
| Minimum ground clearance mm | 325 | ||
| Transmission mode | hytrostatic CVT [HST] | ||
| Running speed m/s | low speed:0~0.97; cruising speed:0~1.37; hign speed:0~1.85 |
||
| Steering | Clutch and Brake | ||
| Cutting | Wo cal control | Rotating diameter×width mm | 900x1903 |
| Way up and down adjustment | Hytrostatic | ||
| Harvest width front-end sub-interval of the grass mm | 2075 | ||
| Cutter width(mm) | 1980 | ||
| Threshing | Threshing System | Type cycle shaft type thresh blade |
|
| Threshing cylinder | Threshing teeth type | bow teeth | |
| Diameter × width mm | Φ620 × 1650 | ||
| Rotational speed rpm | 560 | ||
| Screening method | shaker winnowing 3 air separation | ||
| Grain Tank | Capacity kg/l | 500/300 | |
| Electrical System | 12 Volts Battery Starting, Lighting equipment, Alarms |
||
| 12 Volts Battery Starting, Lighting equipment, Alarms |
|||
| Electrical System Coolant Temperature, Battery Charge, |
|||
| Harvesting Capacity* ha/hr | 0.3~0.7 | ||
