Black/Brown film faced plywood 1220*2440mm *18mm/ film face plywood for construction

Price 6546955.00 VND / Cubic meter/Cubic meters

Overview

Product Description

Film Face Plywood's Specifications

Plywood type

Commercial Film Face Plywood

Core

Mixed core (Eucalyptus, Acacia...)

Face/back

Film Face

Standard size

1220 x 2440 mm, 1250 x 2500 mm (W x L)

Thickness

8 mm - 34 mm As Customer's Requirement

Glue

MR, E1, E2, Melamine, WBP phenol

Moisture content

< 18% , as customer's requirement

Thickness Tolerance

± 0.6 mm

Length, Width tolerance

± 3.4 mm

Packing

Pallets, reinforced by steel tape

Loading capacity

8 pallets / 20 DC, 18 pallets / 40 HC

Grade

AA,A/B, B/B, B/C

Usage

Using for making furniture or construction or industry

Delivery time

10 - 15 days after receiving customer's deposit

Supply ability

1000 cubic meters per month

Density

> 600 kg/m3

Company Introduction

Thanh Phat Co., Ltd is one of the biggest Manufactures in Vietnam. We have nearly 20 years of traditional trading in Wood and many years experience in Exporting Wood Product to international markets.
With an abundant resource of Wood in our area, We confirm that Thanh Phat Co., Ltd is the best company that you should set a trust and experience our service.

At the present, we have many factories and can supply Many kinds of Wood Products such as: Acacia, Pine, Hard Wood Pallets, All Kinds of Plywood (hard core plywood, brown/ black film faced plywood,Birch, Bintangor, Melamine, pine face Plywood, etc) , Broom Stick and Broom Handle, Hard Wood Timber and Lumber, Wood Shaving, Hot charcoal sawdust ,etc



Here are some photos of our Factories where manufacture Hard Wood Core Plywood.

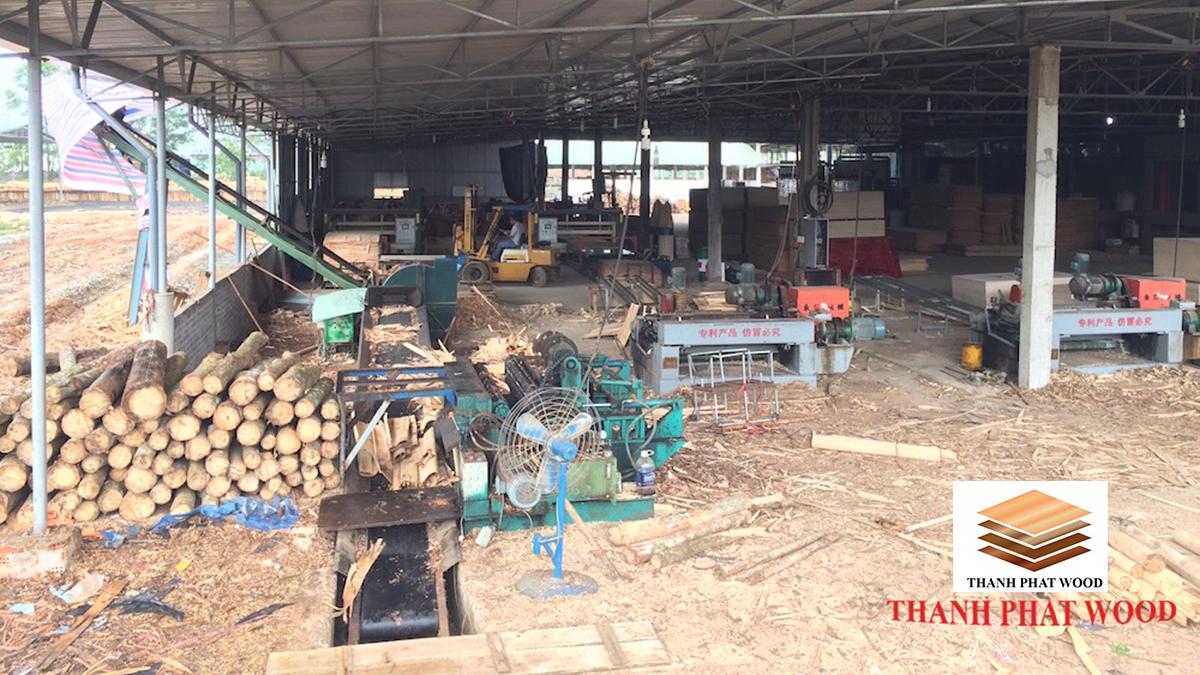

Our Factory's Photo

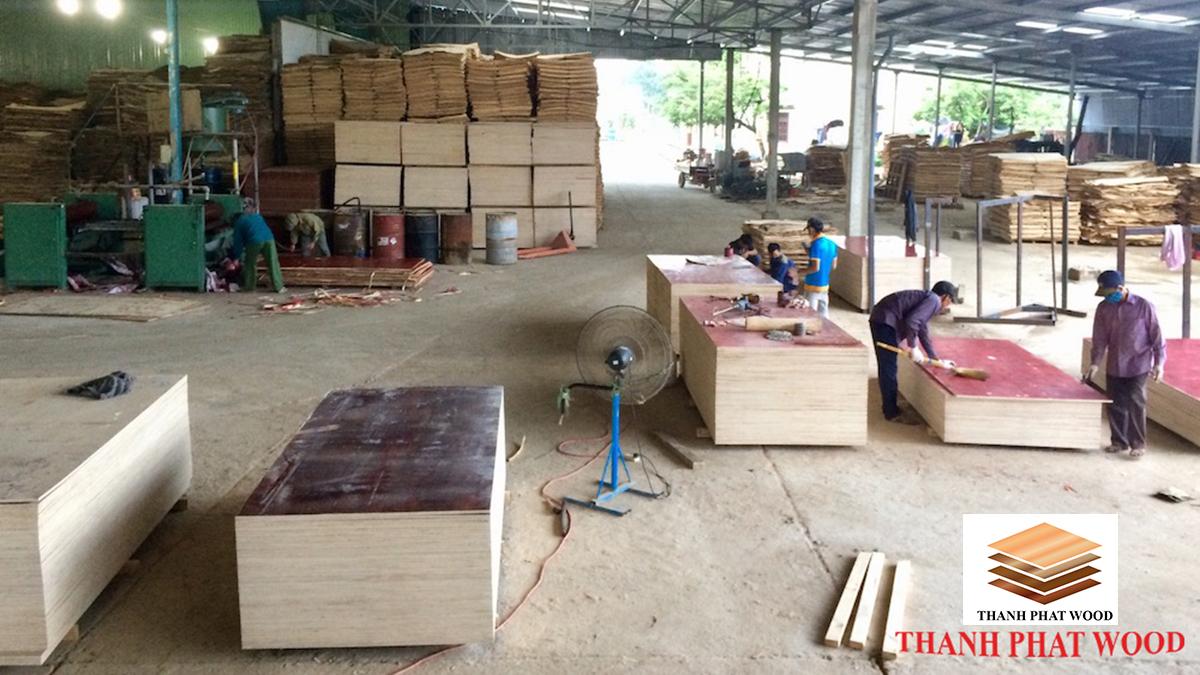

Film Face Plywood Factory



Product features

1. Light Weight: We choose the high grade eucalyptus and poplar as the basic material, they are very light, so film faced plywood is convenient for transporting, and only one person could delivery single form work by hand. 9/12/15/18/21 mm Film Faced Shuttering Plywood
2. Easy To Cut: the plywood is easy to cut, so according to the construction, the form work could be cut into the required size. 9/12/15/18/21 mm Film Faced Shuttering Plywood
3. Re-used: film faced plywood could be used 8-10 times.
4.Multi Using: film faced plywood could be used for wall, slab, column, beam and bridge concrete pouring etc..
5. No Deformation: film faced plywood is also whole but not deformation and chipping after 72 hours cooking in boiling water.
6. High Quality Film: film faced plywood protect the form work surface from the corrosion and makes the form work durable, improves the flatness of the concrete surface and makes the concrete surface save the second time plastering, so it could save a lot cost of construction.

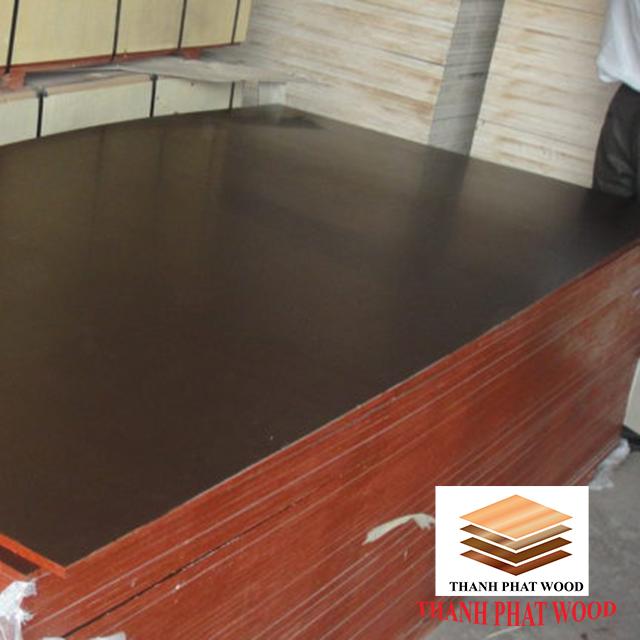

Film Face Plywood



Product procession

Choosing Good Veneers ⇒ Gelatinizing The Venner ⇒ Laying ⇒ Cold Pressing ⇒ Manual Repair ⇒ Coated Film on the plywood⇒ Hot Pressing ⇒ Cut ⇒ Inspection ⇒ Packing

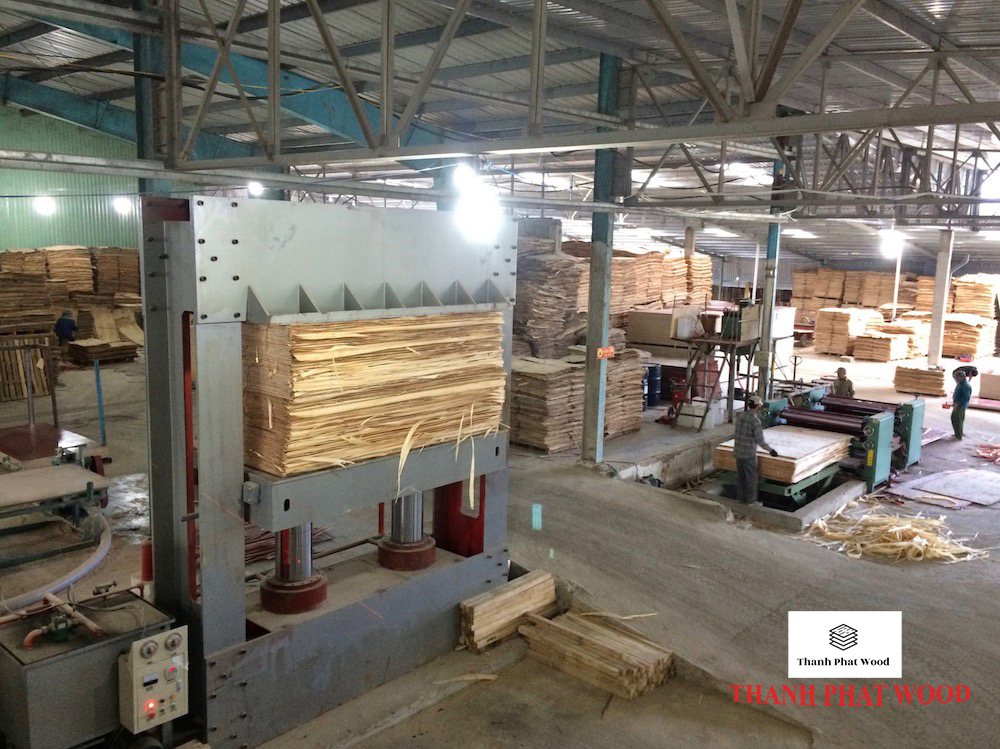

Boards will be pressed by hydraulic press



Application

Film faced plywood can be widely used in various concrete engineering such as high-speed railways, subways, and airport ports, as well as in infrastructure projects such as shear walls, vertical wall panels, bridges, dams and tunnel construction, civil construction and commercial engineering.



It is a pleasure for us if you can visit our company and factories someday!
We are willing to supply the best quality product with the best price
Please contact us by leaving a message or send us an email by mail address: thanhphatda@gmail.com Our consultant staffs will answer and contact you soon !
