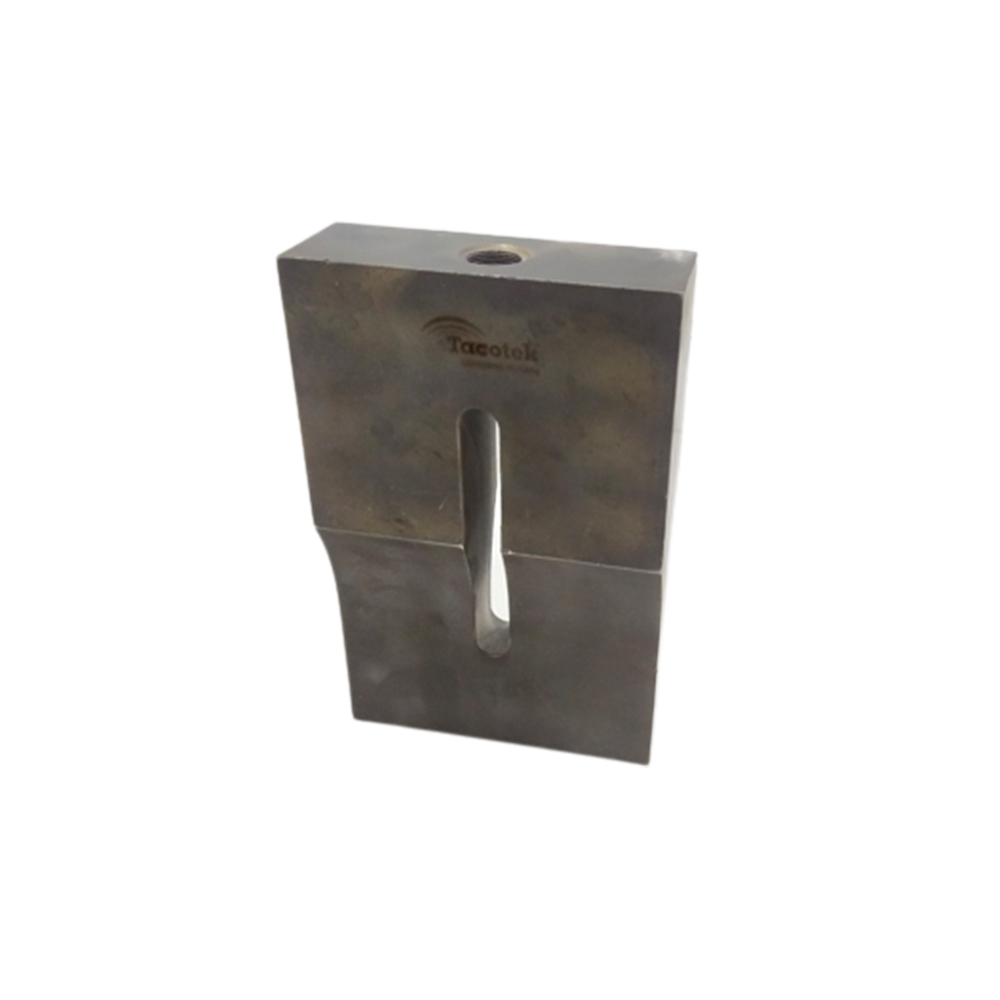

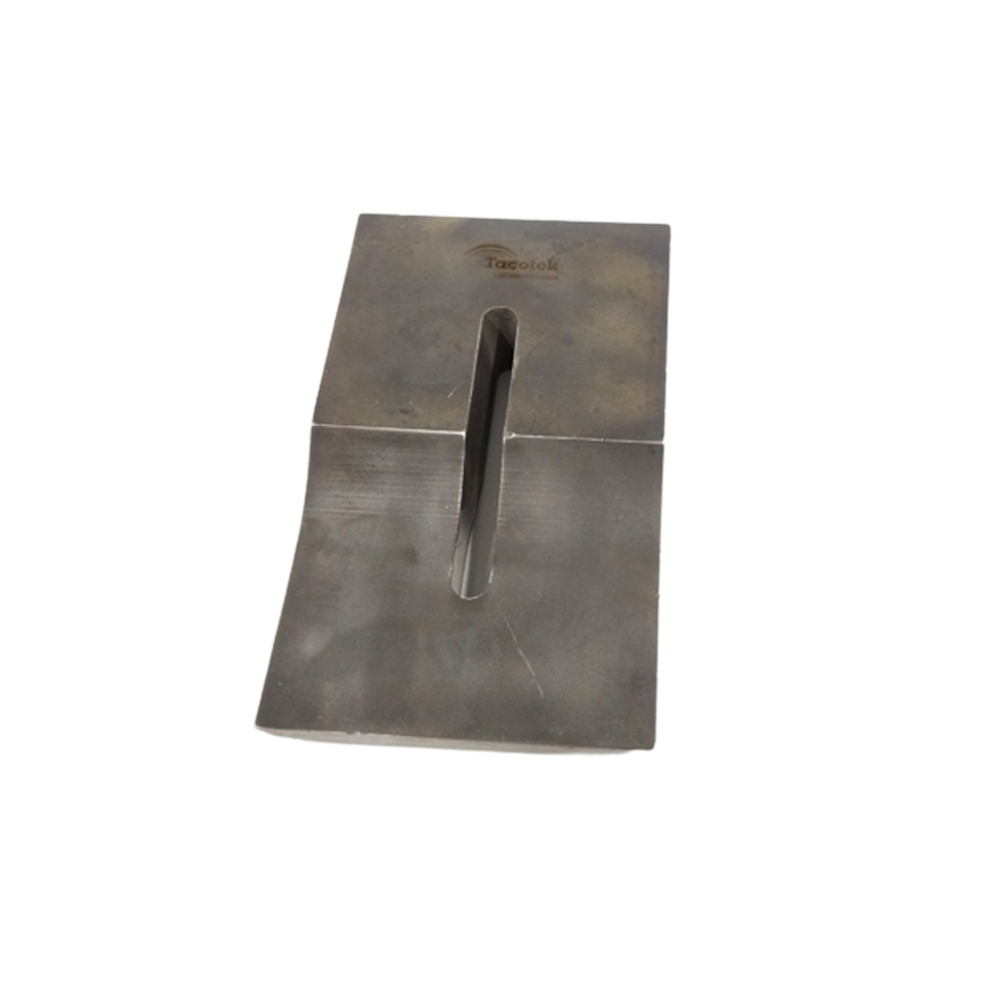

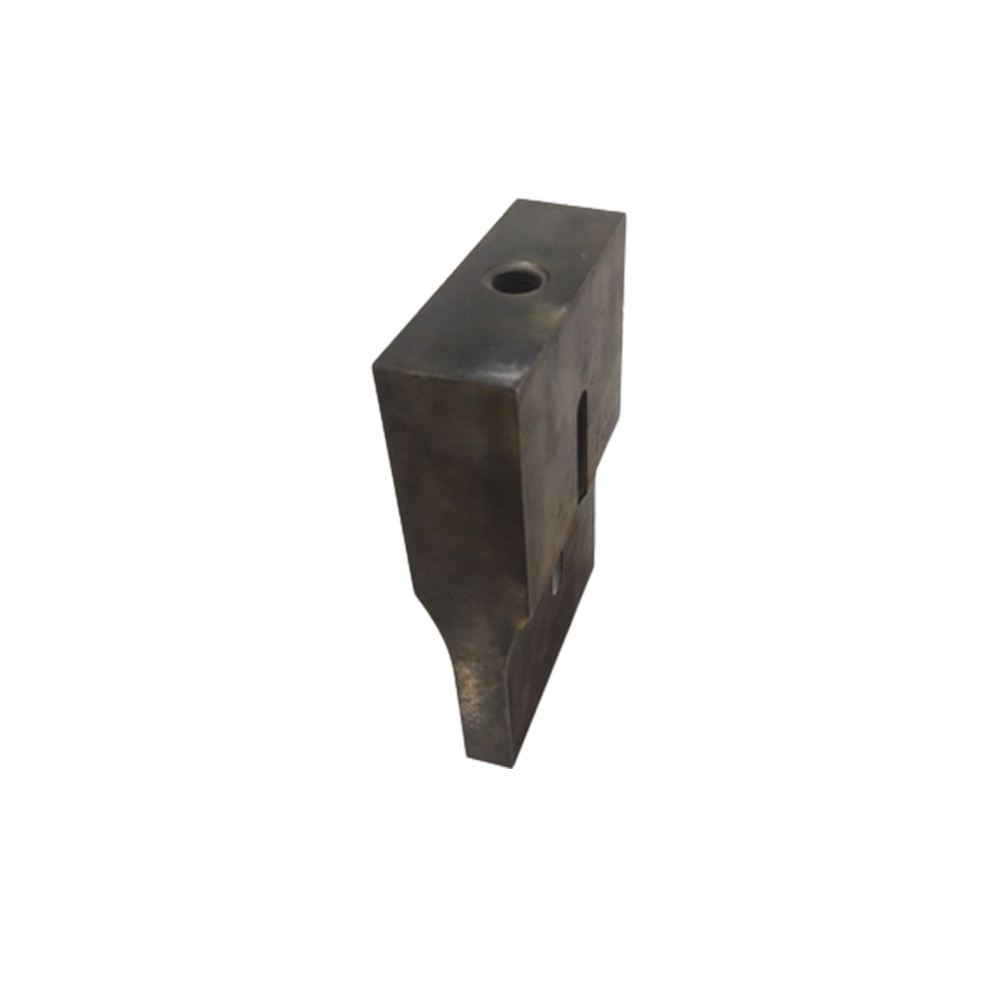

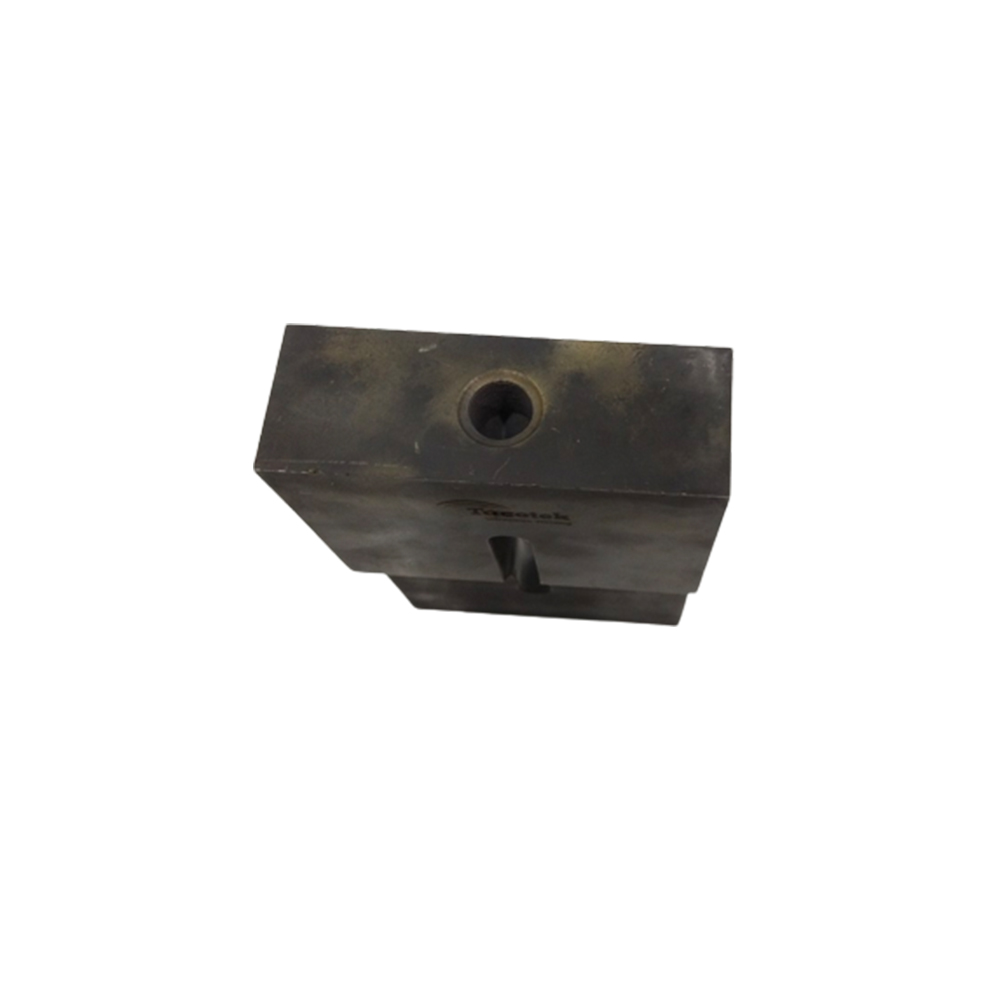

High quality 15kHz Horn for Ultrasonic Welding Machine from Factory for Wholesale / Quick response and Competitive prices

Competitive Advantage

1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Main Functions of transducer

Low resonance impedance .high mechanical quality factor. High electro-acoustic conversion efficiency and large amplitude. lower heating, large temperature range; small performance drift, stable working. Good material and long lifetime.

Instruction of use

The frequencies of the ultrasonic transducer, booster and horn must be matched with each other.

The frequencies of horn and booster should be lower than the frequency of transducer.

The connection surface must ensure vertical and flatness, and the connection torque must be appropriate.

The Welding of electrode plate should be reliable and covered with damping glue.

The operating temperature of the ultrasonic transducer should be lower than 60 °C, and the input power should be lower than the rated
power.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
